Lattice Hinge Cell Fill (LHC)

Lattice Hinge Cell Fill (LHC)

Description

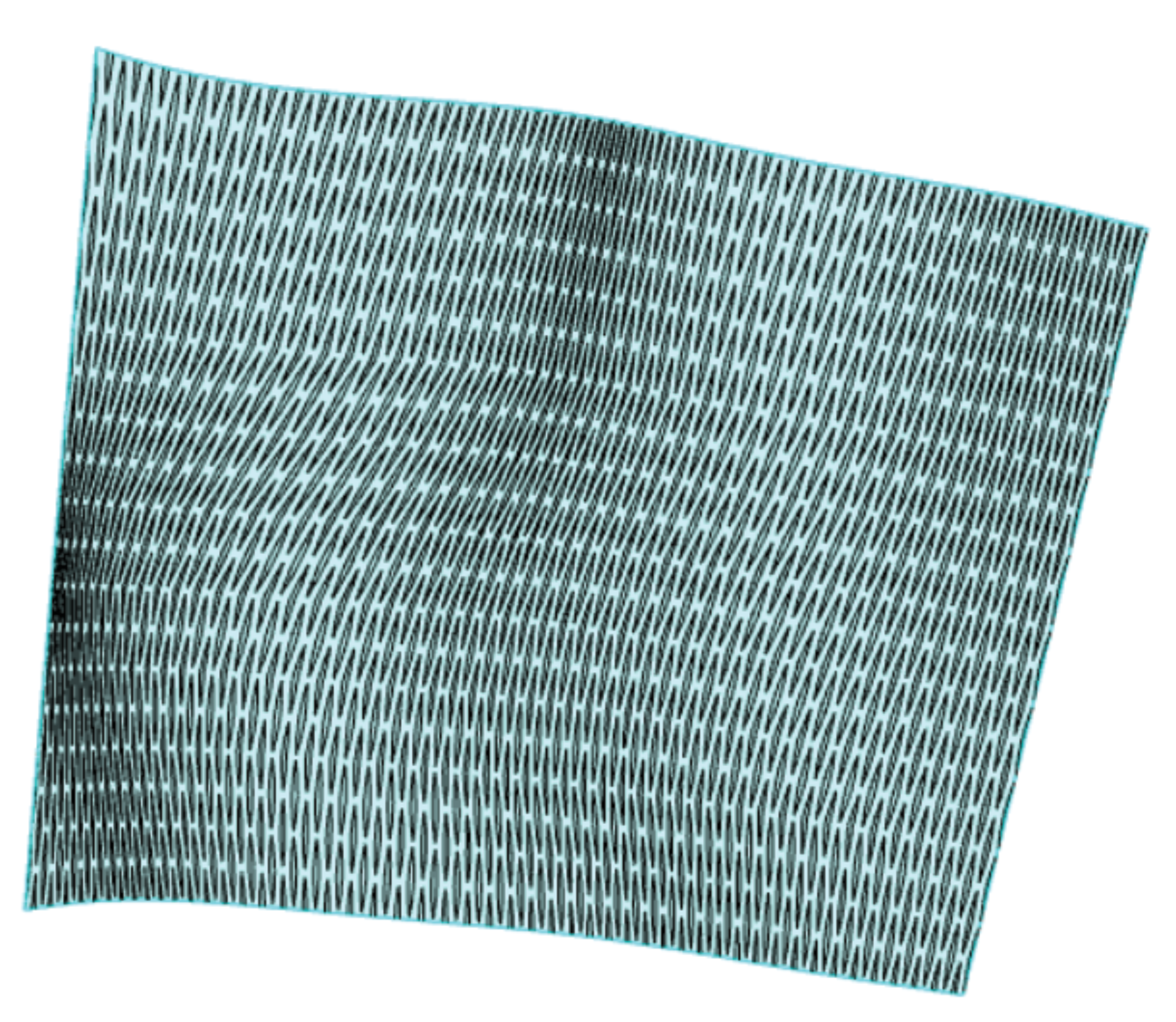

Populate lattice hinge panels with a curve based unit cell

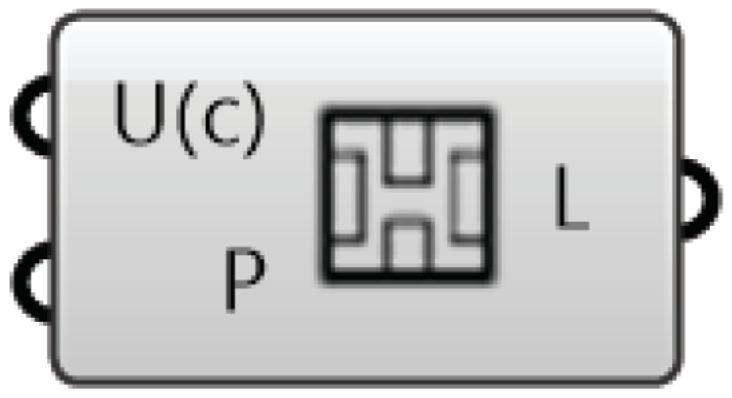

Inputs

Unit cell (U(c)) - [curves] - Unit cell to populate lattice hinge panels
Panels (P) - [surface] - Panels to be populated with unit cells

Outputs

Lattice Hinge (L) - [curve] - List of curves that make up the lattice hinge
