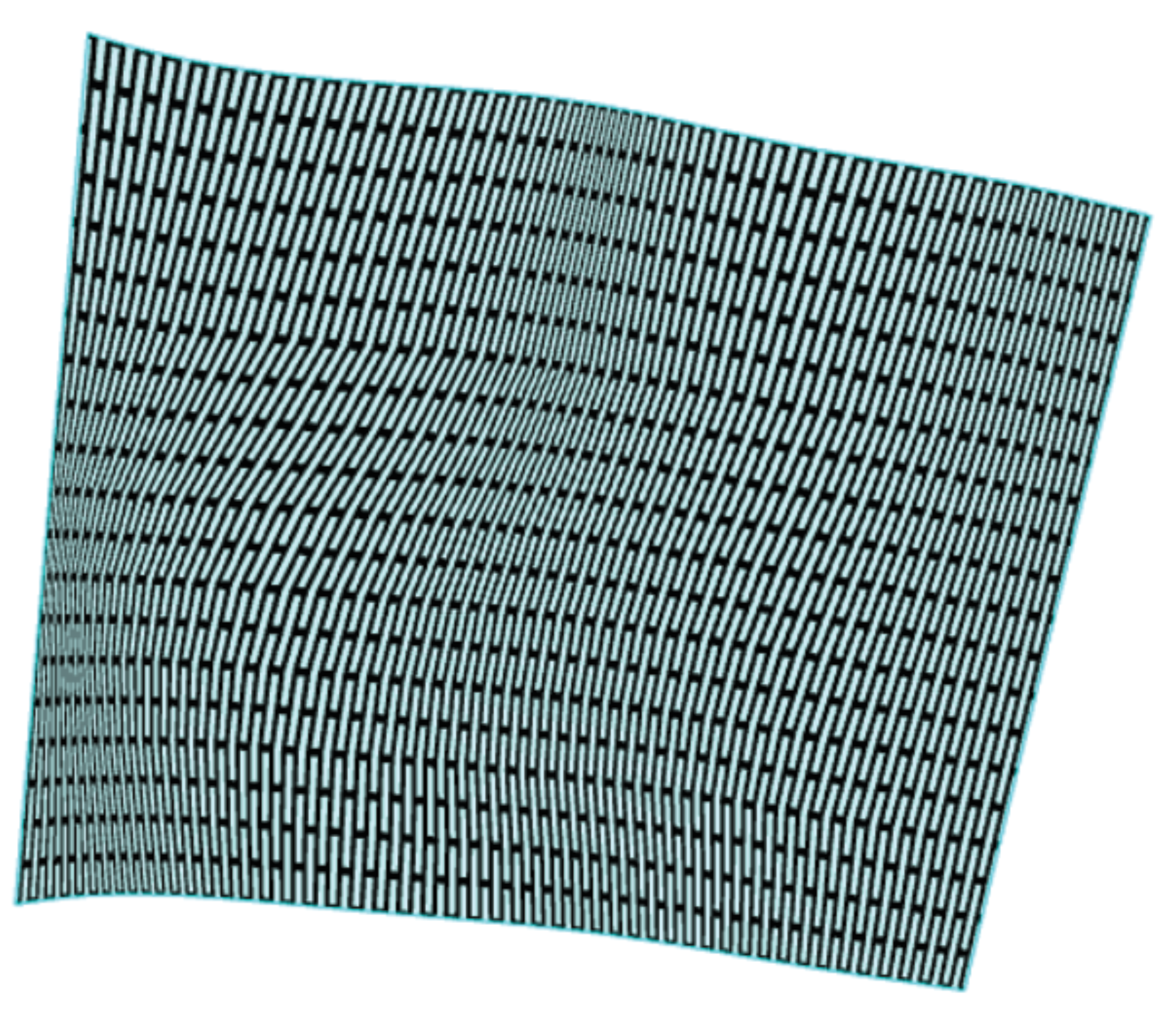

Lattice Hinge Shell Fill (LHCs)
Description
Populate lattice hinge panels with a shell based unit cell
 |  |
Inputs
- Unit cell (shell) (U(s)) - [mesh] - Unit cell to populate lattice hinge panels
- Voxels (V) - [twisted box] - Voxels to be populated with unit cells
- Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 - 0.001)
Outputs
- Lattice Hinge (shell) (L(s)) - [mesh] - Joined mesh that make up the lattice hinge
