Lattice Hinge Tween Shell Fill (LHTs)

Description

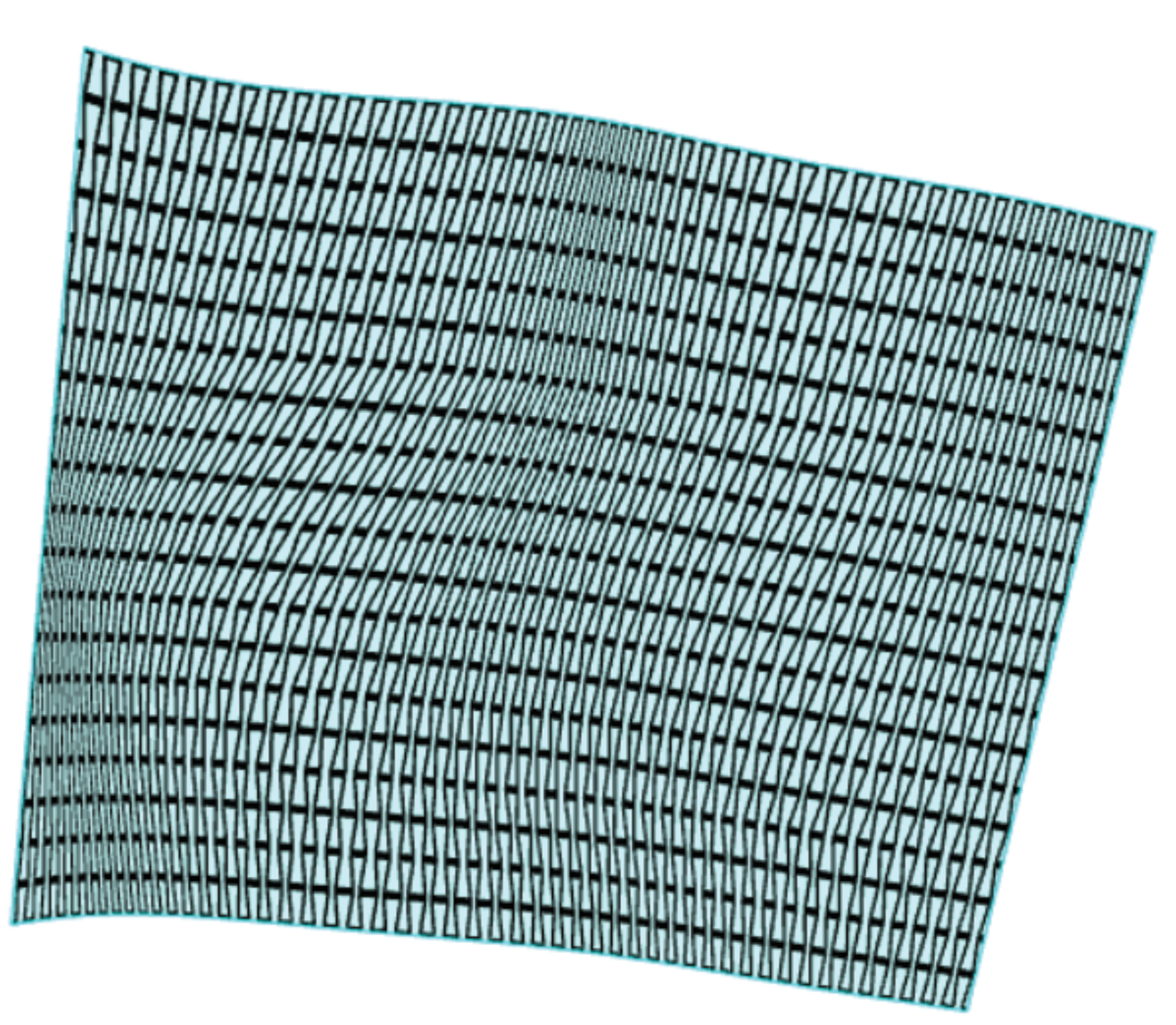

Tween between lattice hinge panels with shell based unit cells

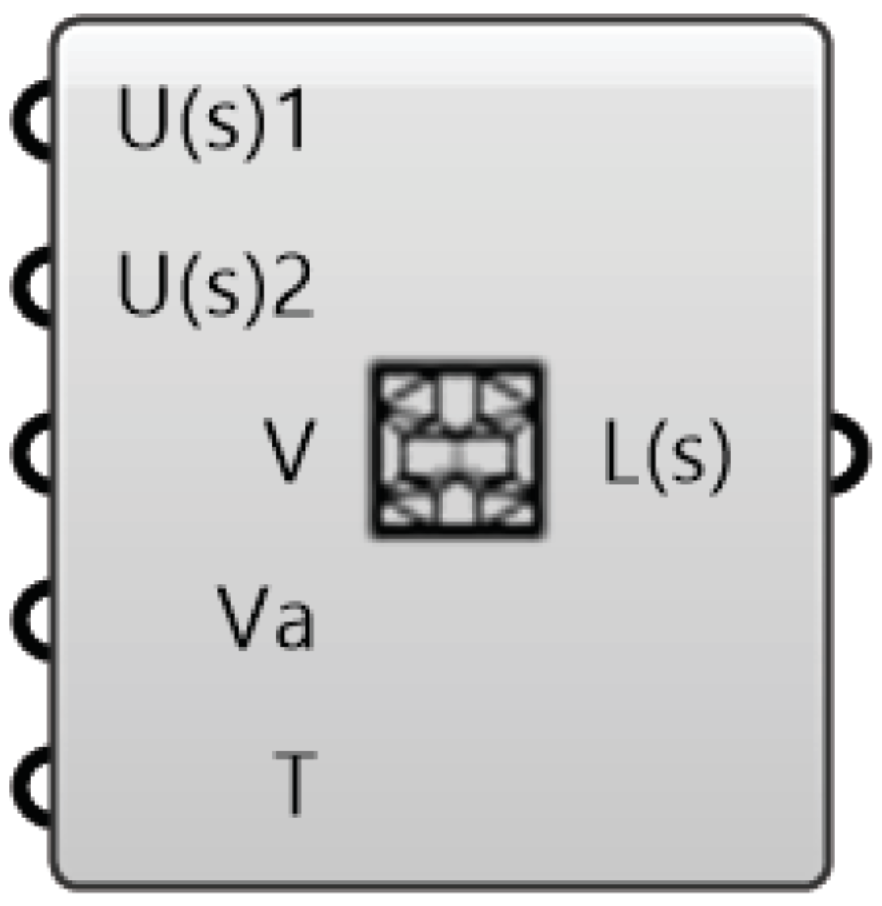

Inputs

• Unit cell 1 (shell) (U(s)1) - [mesh] - Unit cell to populate lattice hinge panels
• Unit cell 2 (shell) (U(s)2) - [mesh] - Unit cell to populate lattice hinge panels
• Voxels (V) - [twisted box] - Voxels to be populated with unit cells
• Value (Va) - [number] - Value from 0-1 corresponding to each voxel
• Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 - 0.001)

Outputs

• Lattice Hinge (shell) (L(s)) - [mesh] - Joined mesh that make up the lattice hinge
