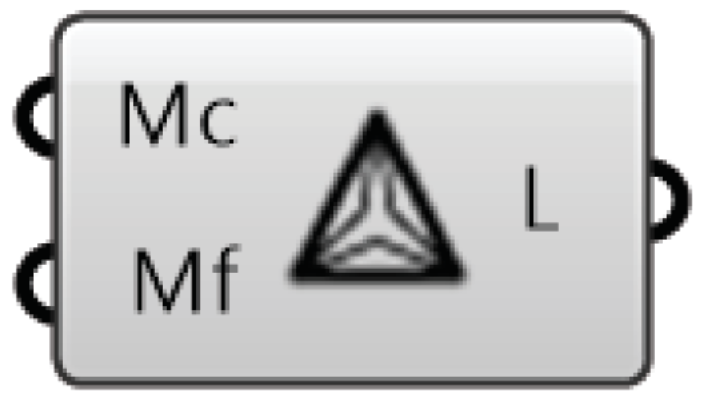

Mesh Cell Fill (MCF)

Mesh Cell Fill (MCF)

Description

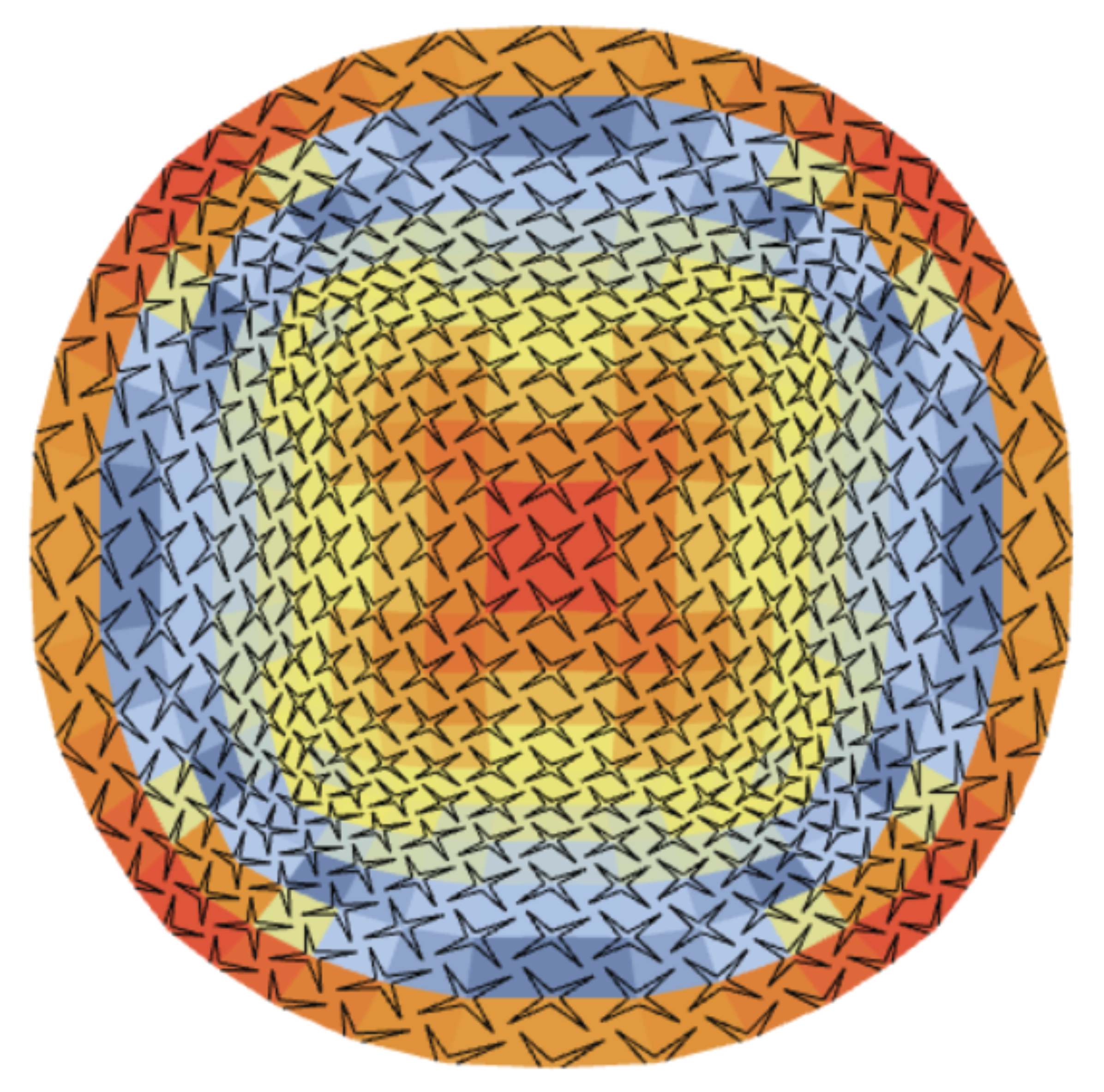

Map lattice unit cells to mesh faces

Inputs

Mesh cell (Mc) - [geometry] - Lattice cell unit to map to mesh faces
Mesh faces - (Mf) - [mesh] - Mesh face (exploded as single meshes)

Outputs

Lattice Hinge (L) - [curve] - Joined curves that make up the lattice hinge
