Mesh Hinge Cell - Tri (MHt)
Description

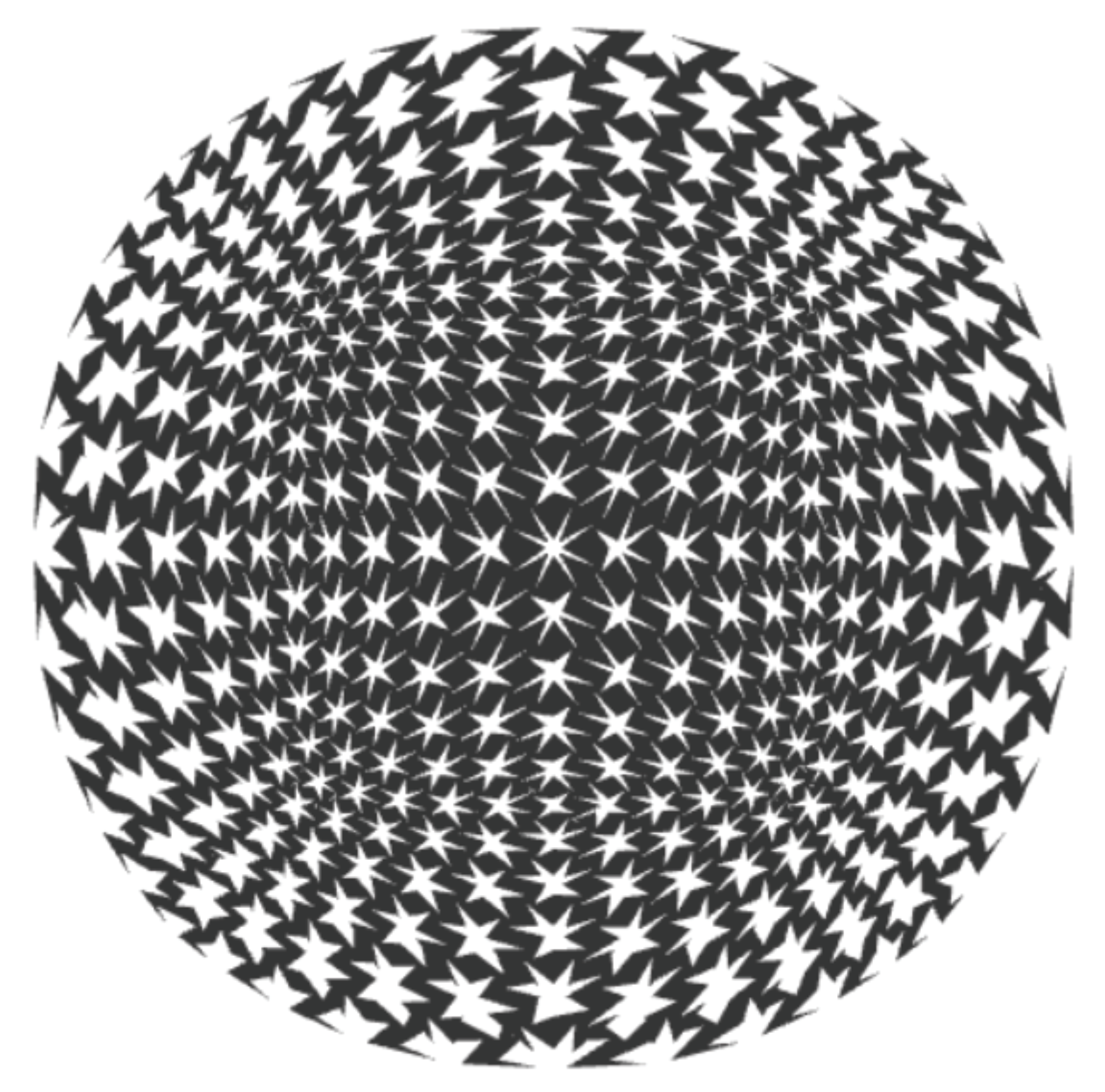

Map a triangle based parametric cell with two domains to mesh faces. (This is an example of how to use parameters from the “Mesh Flatten” component).
 |  |

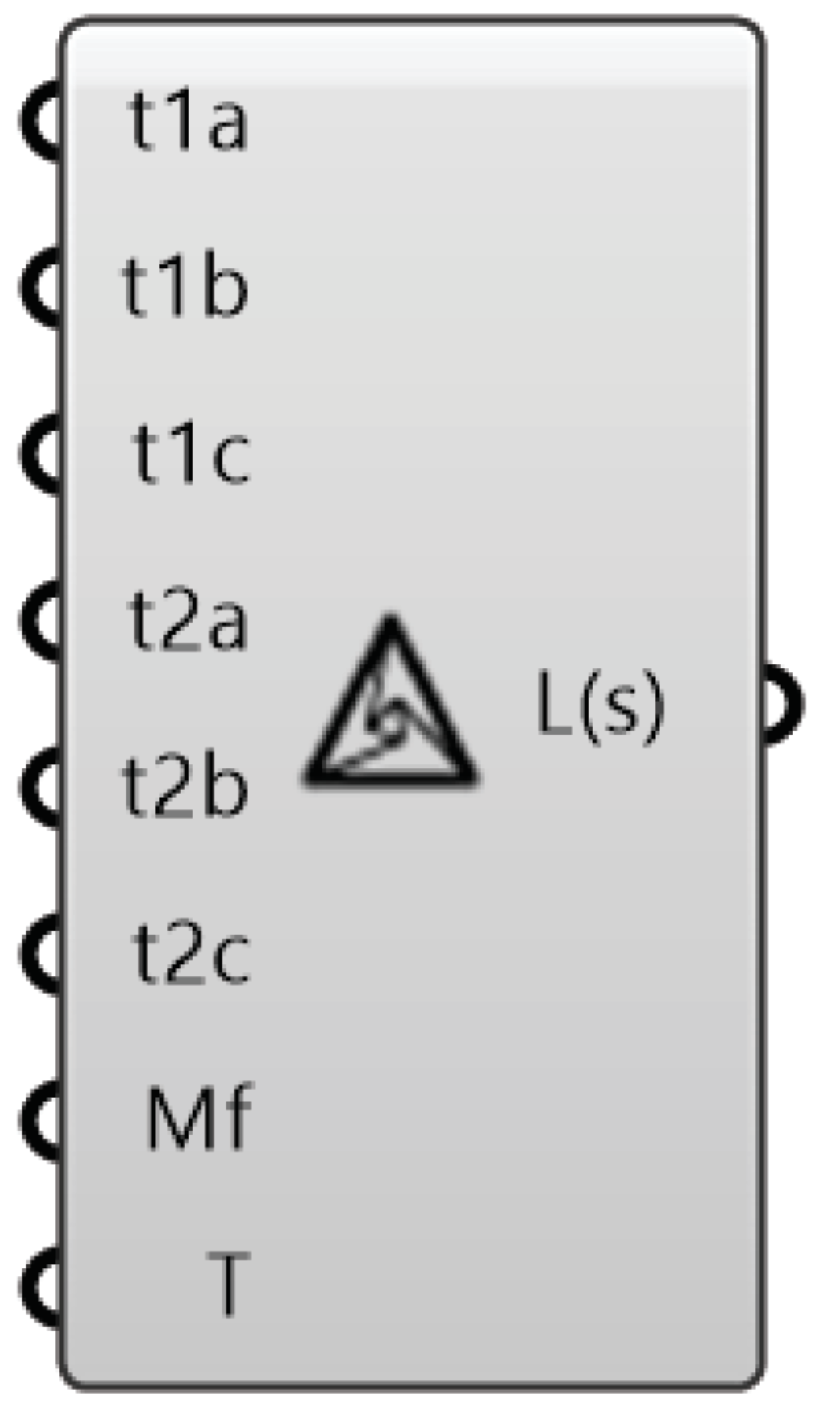

Inputs
- Parameter 1a (t1a) - [number] - Value 0-1
- Parameter 1b (t1b) - [number] - Value 0-1
- Parameter 1c (t1c) - [number] - Value 0-1
- Parameter 2a (t2a) - [number] - Value 0-1
- Parameter 2b (t2b) - [number] - Value 0-1
- Parameter 2c (t2c) - [number] - Value 0-1
- Mesh faces - (Mf) - [mesh] - Mesh face (exploded as single meshes)
- Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 - 0.001)
Outputs
- Lattice Hinge (shell) (Ls) - [mesh] - Joined mesh that make up the lattice hinge
