Mesh Shell Fill (MSF)

Mesh Shell Fill (MSF)

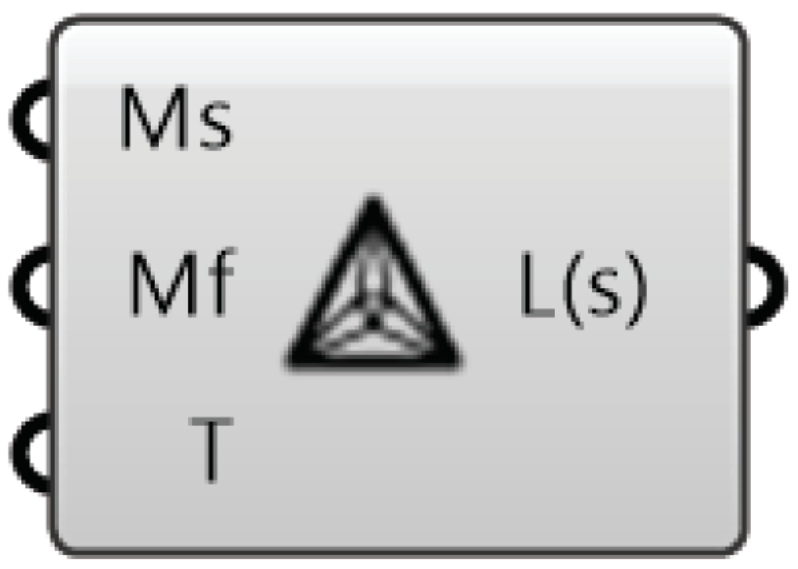

Description

Map shell lattice unit cells to mesh faces

Inputs

  • Mesh shell (Ms) - [geometry] - Lattice shell unit to map to mesh faces
  • Mesh faces - (Mf) - [mesh] - Mesh face (exploded as single meshes)
  • Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 - 0.001)

Outputs

  • Lattice Hinge (shell) (Ls) - [mesh] - Joined mesh that make up the lattice hinge
