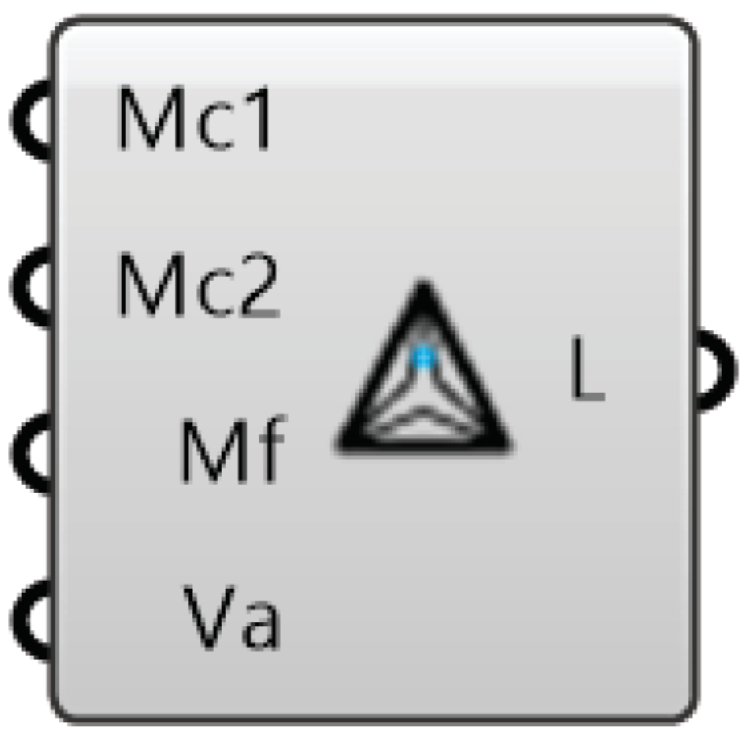

Mesh Tween Cell Fill (MTC)

Mesh Tween Cell Fill (MTC)

Description

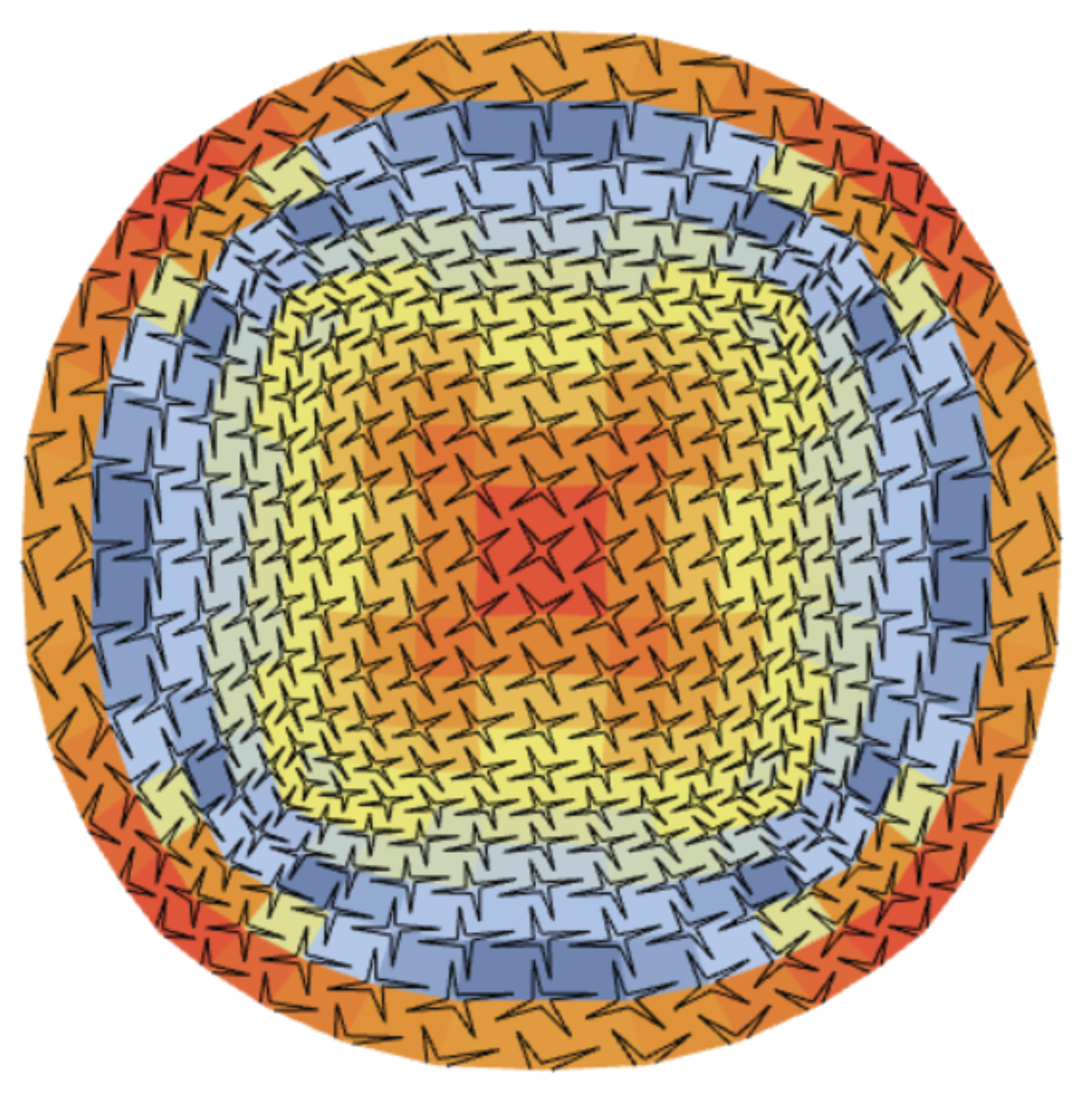

Tween between lattice unit cells on mesh faces

Inputs

  • Mesh cell 1 (Mc1) - [geometry] - Lattice cell unit to map to mesh faces
  • Mesh cell 2 (Mc2) - [geometry] - Lattice cell unit to map to mesh faces
  • Mesh faces - (Mf) - [mesh] - Mesh face (exploded as single meshes)
  • Value (Va) - [number] - Value from 0-1 corresponding to each mesh face

Outputs

  • Lattice Hinge (L) - [curve] - Joined curves that make up the lattice hinge
