Mesh Tween Shell Fill (MTF)

Mesh Tween Shell Fill (MTF)

Description

Tween between mesh shell unit cells on mesh faces

Inputs

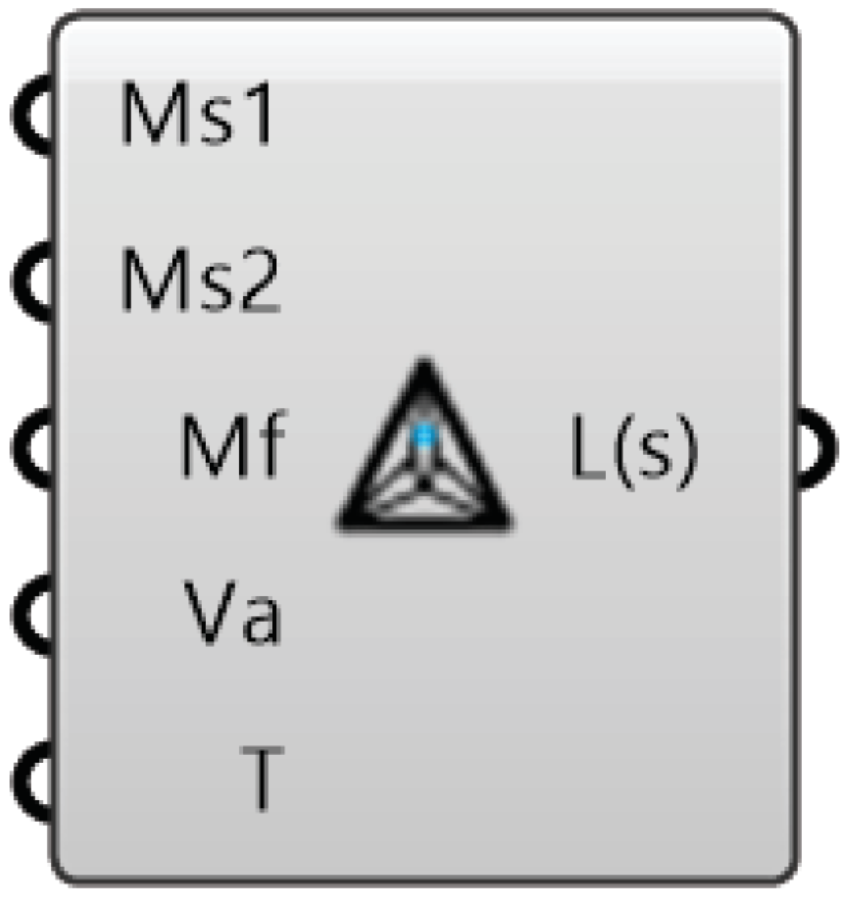

  • Mesh shell 1 (Ms1) - [geometry] - Lattice shell unit to map to mesh faces
  • Mesh shell 2 (Ms2) - [geometry] - Lattice shell unit to map to mesh faces
  • Mesh faces - (Mf) - [mesh] - Mesh face (exploded as single meshes)
  • Value (Va) - [number] - Value from 0-1 corresponding to each mesh face
  • Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 - 0.001)

Outputs

  • Lattice Hinge (shell) (Ls) - [mesh] - Joined mesh that make up the lattice hinge
