Remove by Valence (RV)

Remove by Valence (RV)

Description

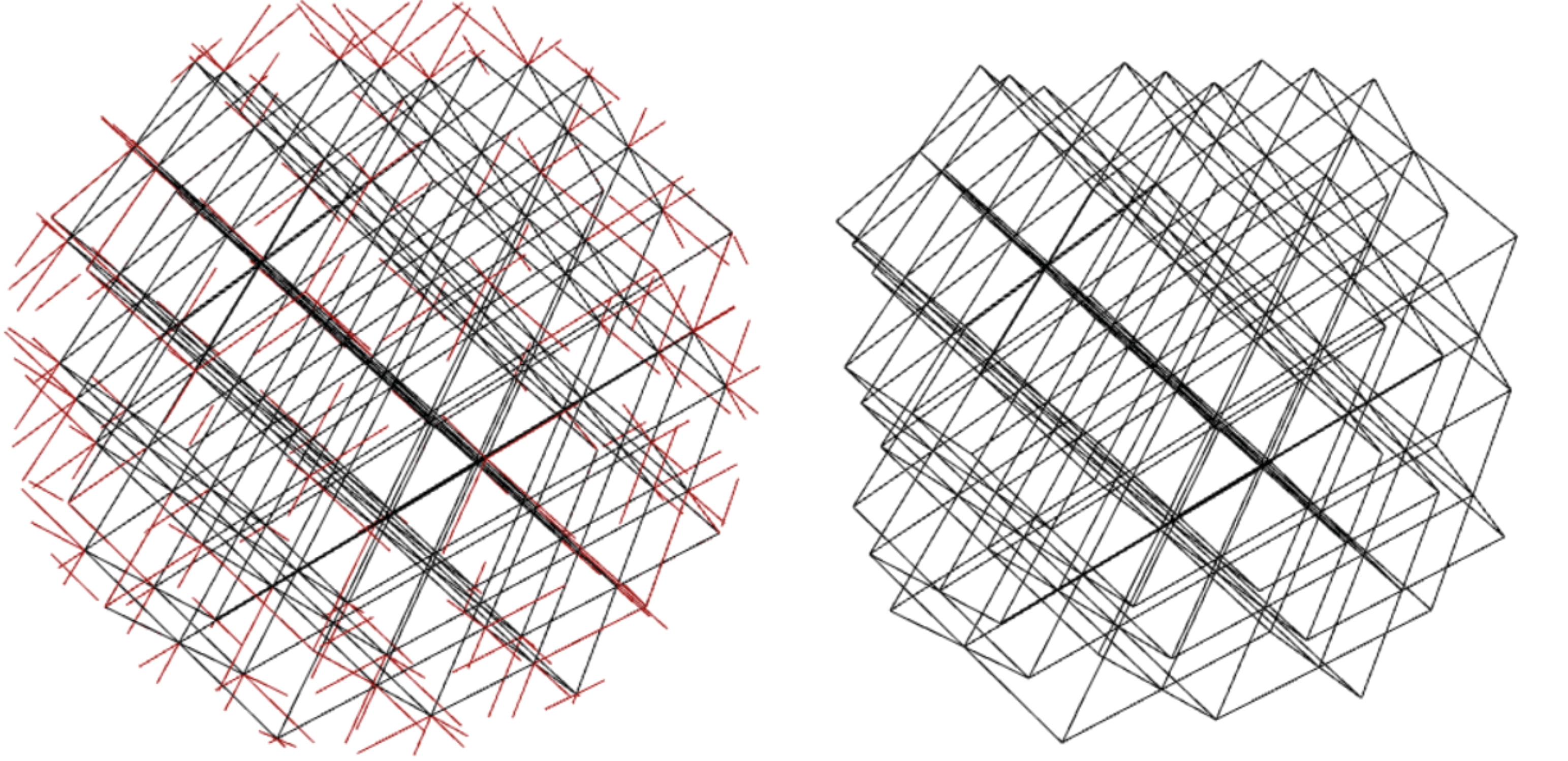

Remove curves by number of connections (this can be very slow, sorry). If only removing valence 1, the ‘Untrimmed Lattice’ output of Trim Lattice will have the same result.

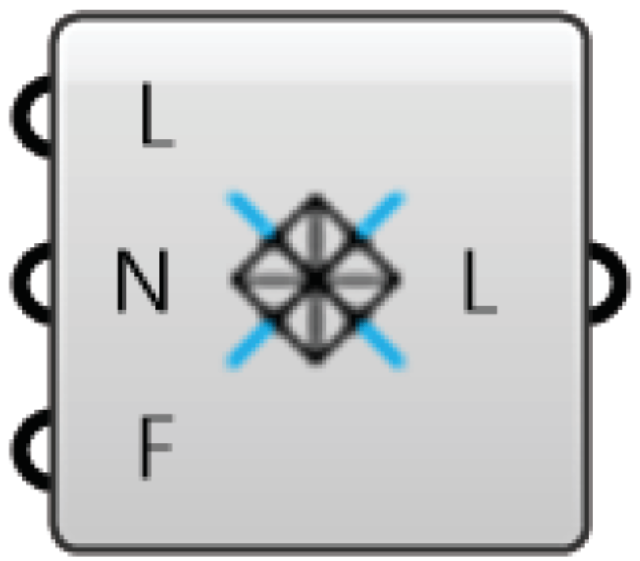

Inputs

  • Lattice (L) - [curves] - Lattice curves to filter
  • Valence Number (N) - [number] - Minimum number of connections each curve has
  • Flip (F) - [boolean] - If true, curves under valence number are removed. If false, curves over valence number are removed

Outputs

  • Lattice (L) - [curves] - Filtered lattice curves
