Remove Duplicate Curves (RD)
Description

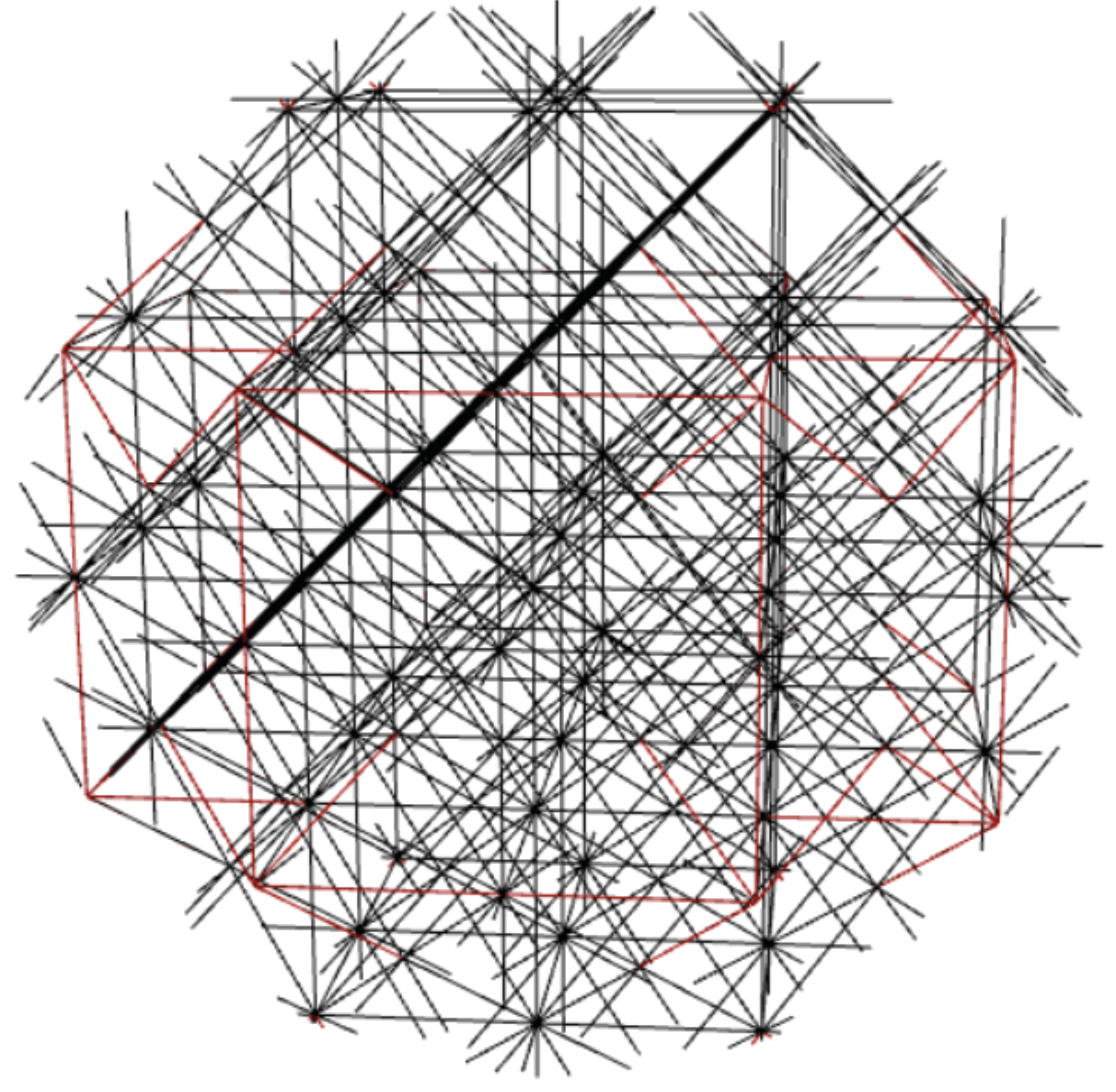

Remove curves that share the same midpoint. This is a simple and fast method of removing duplicates by searching for common midpoints rather than common endpoints. Since all lattice curves should connect end-to-end, none should have common midpoints unless they are duplicates.
 |  |

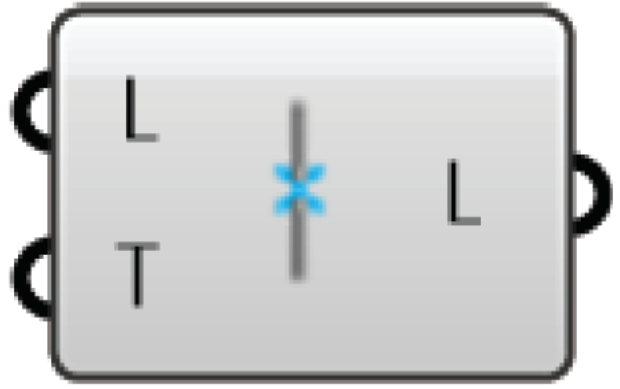

Inputs
- Lattice (L) - [curves] - Lattice curves to filter
- Tolerance (T) - [number] - Tolerance for merging curves (distance between midpoints ~0.1 - 0.001)
Outputs
- Lattice (L) - [curves] - Filtered lattice curves
