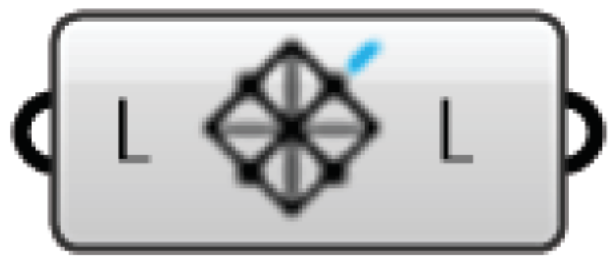

Remove Floating (RF)

Remove Floating (RF)

Description

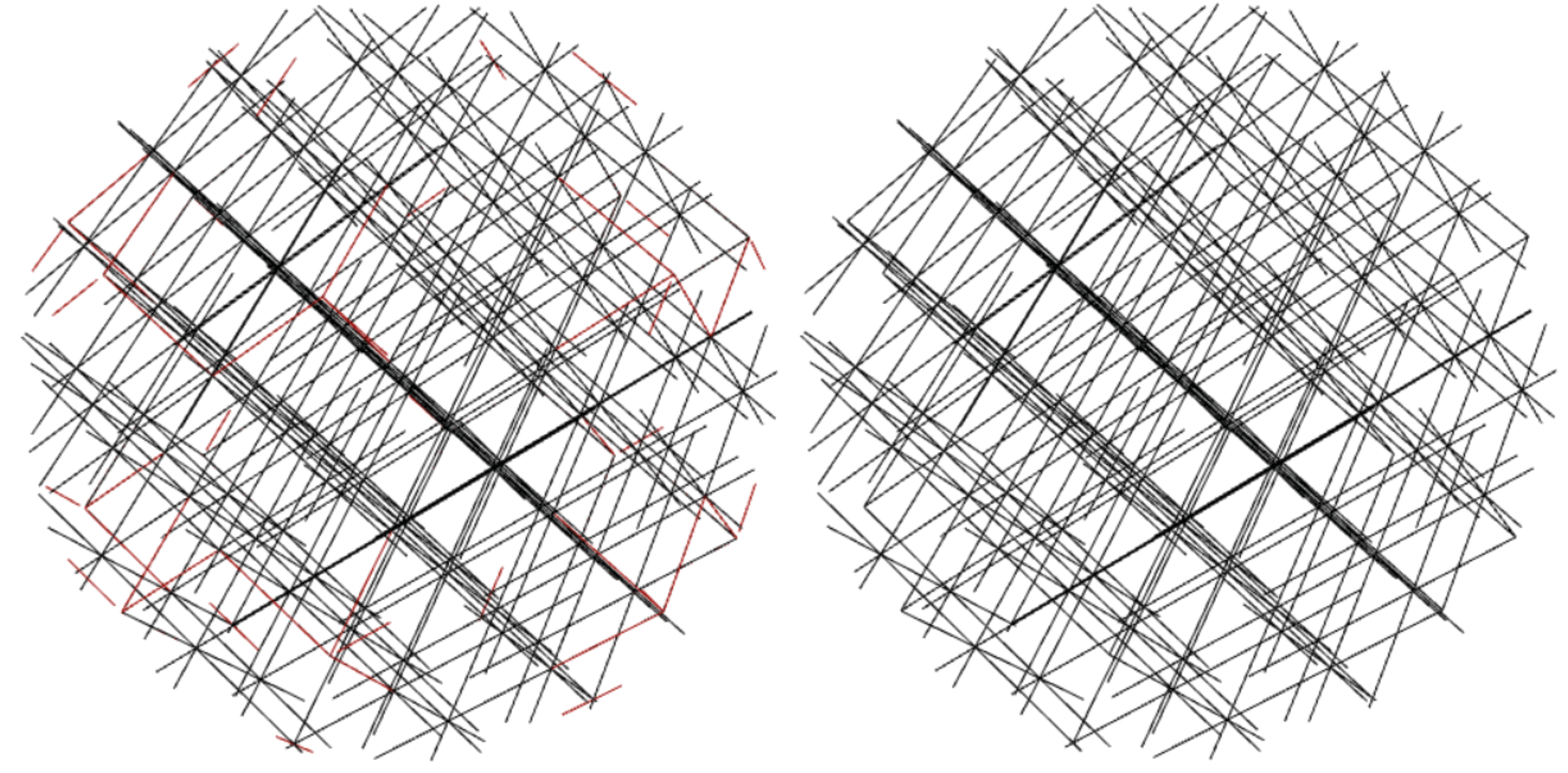

Remove disconnected curves. This will remove curves that have no connections to other curves. To reduce time, use this tool on only the ‘Trimmed Lattice’ output of the Trim Lattice tool.

Inputs

  • Lattice (L) - [curves] - Lattice curves to filter

Outputs

  • Lattice (L) - [curves] - Filtered lattice curves
