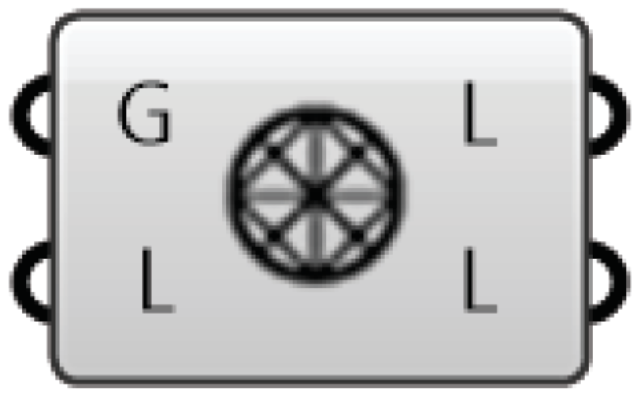

Trim Lattice (TL)

Description

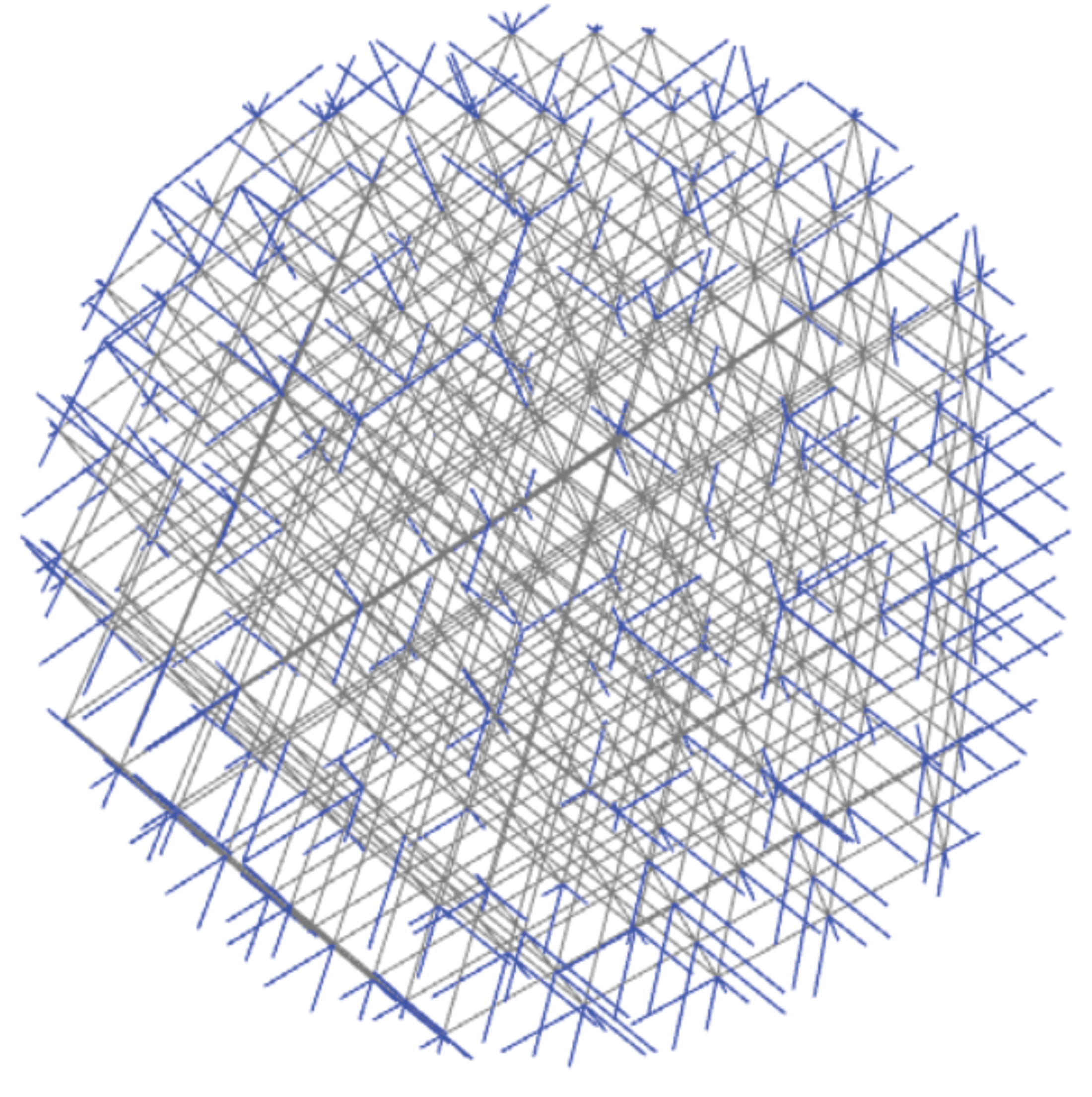

Trim lattice with a closed volume (mesh or brep). This will trim the lattice curves to within the boundary of a closed volume.

Inputs

• Geometry (G) - [brep / mesh] - Geometry to trim with (closed brep or mesh)
• Lattice (L) - [curves] - Lattice curves to trim

Outputs

• Trimmed Lattice (L) - [curves] - Lattice curves that have been trimmed
• Untrimmed Lattice (L) - [curves] - Lattice curves that have not been trimmed (Typically removes curves with valence 1)
