Trim Shell (TS)

Trim Shell (TS)

Description

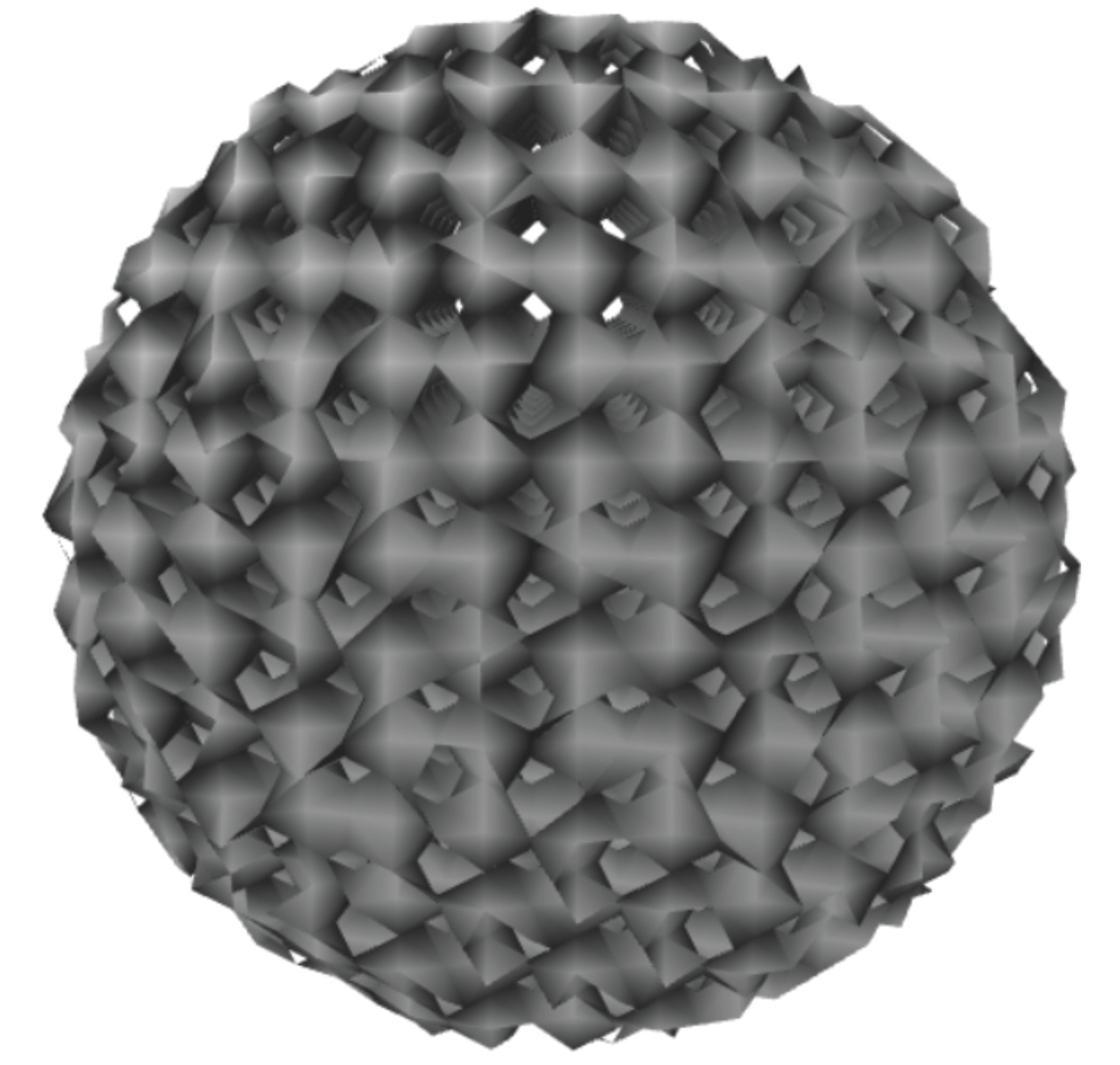

Trim shell lattice with a closed volume (mesh or brep). This will trim a shell by removing the mesh vertices that are outside of the boundary of a closed mesh or brep. Subdividing the mesh of the shell to add more vertices before trimming will make a more accurate trim but will take longer.

Inputs

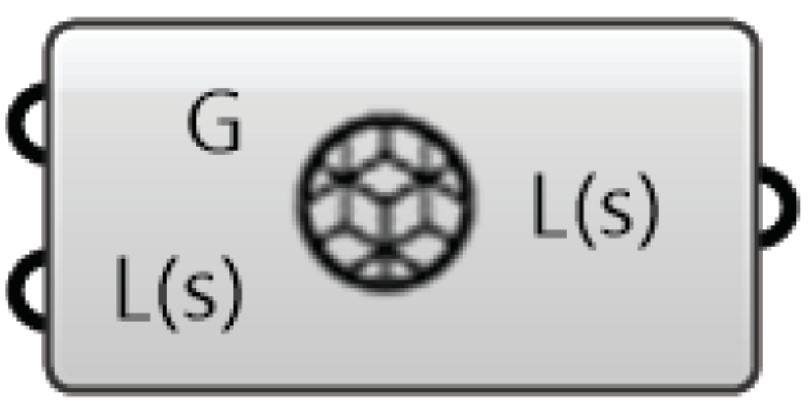

  • Lattice (shell) (L(s)) - [mesh] - Lattice shell to trim
  • Geometry (G) - [brep / mesh] - Geometry to trim with (closed brep or mesh)

Outputs

  • Lattice (shell) (L(s)) - [mesh] - Trimmed lattice shell
