Cell Morph Value (CMv)

Description

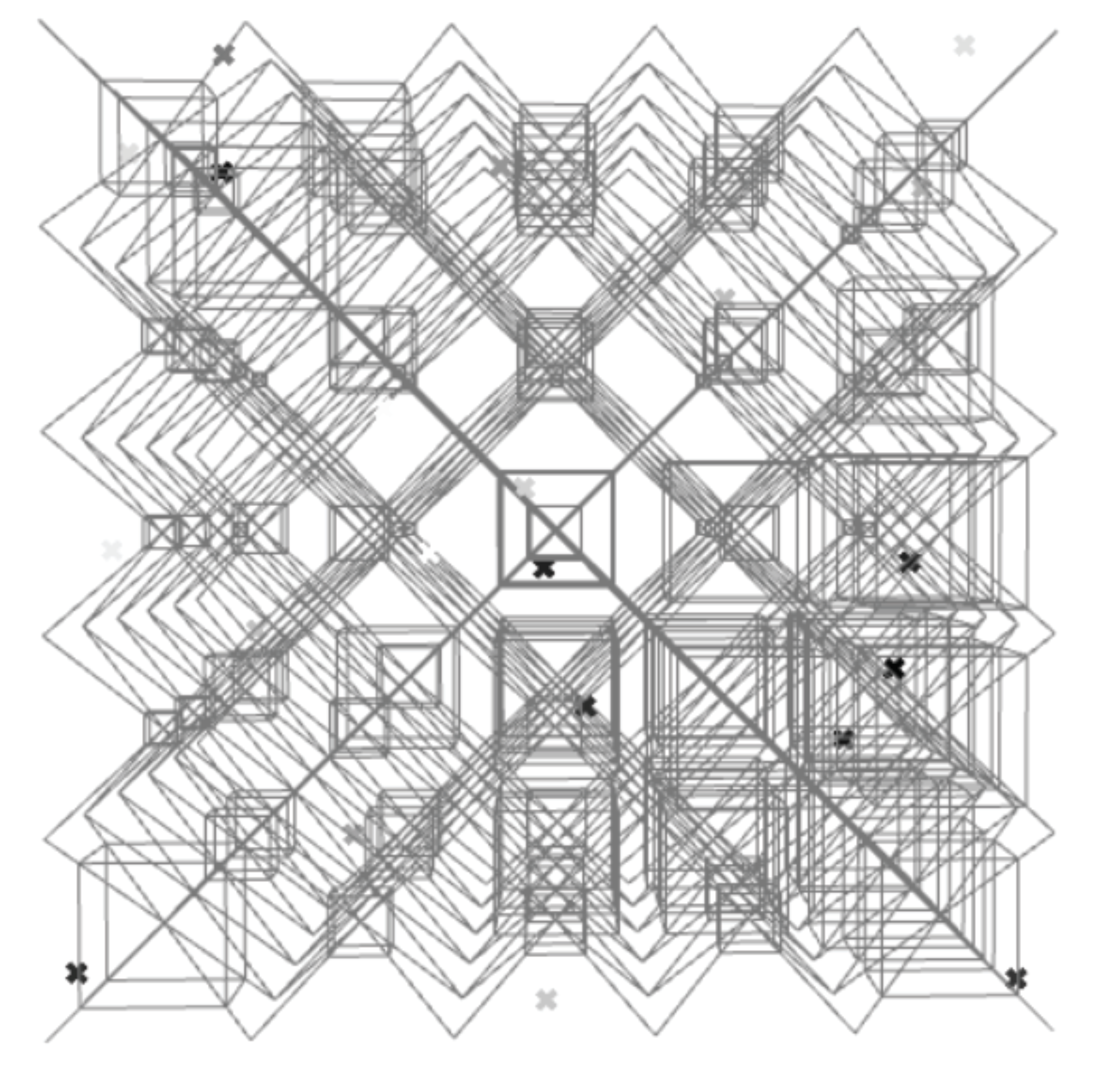

Morph unit cells with a point cloud and corresponding values.

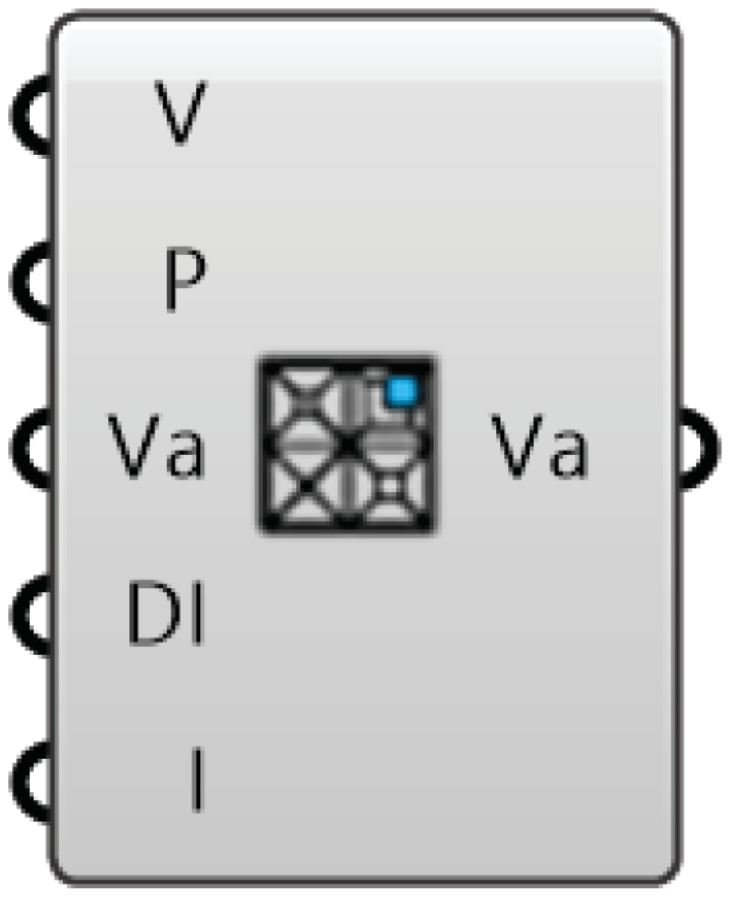

Inputs

• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
• Points (S) - [point] - List of points (flattened)
• Values (Va) - [number] - List of values that correspond to points (flattened)
• Distance Influence (DI) - [boolean] - If true the distance between the points and voxels will affect the magnitude
• Influence (I) - [number] - Smoothed range of attractor influence (0-1)

Outputs

• Values (Va) - [number] - List of values from 0-1 corresponding to each voxel
