Cell Shell Fill (CSF)

Description

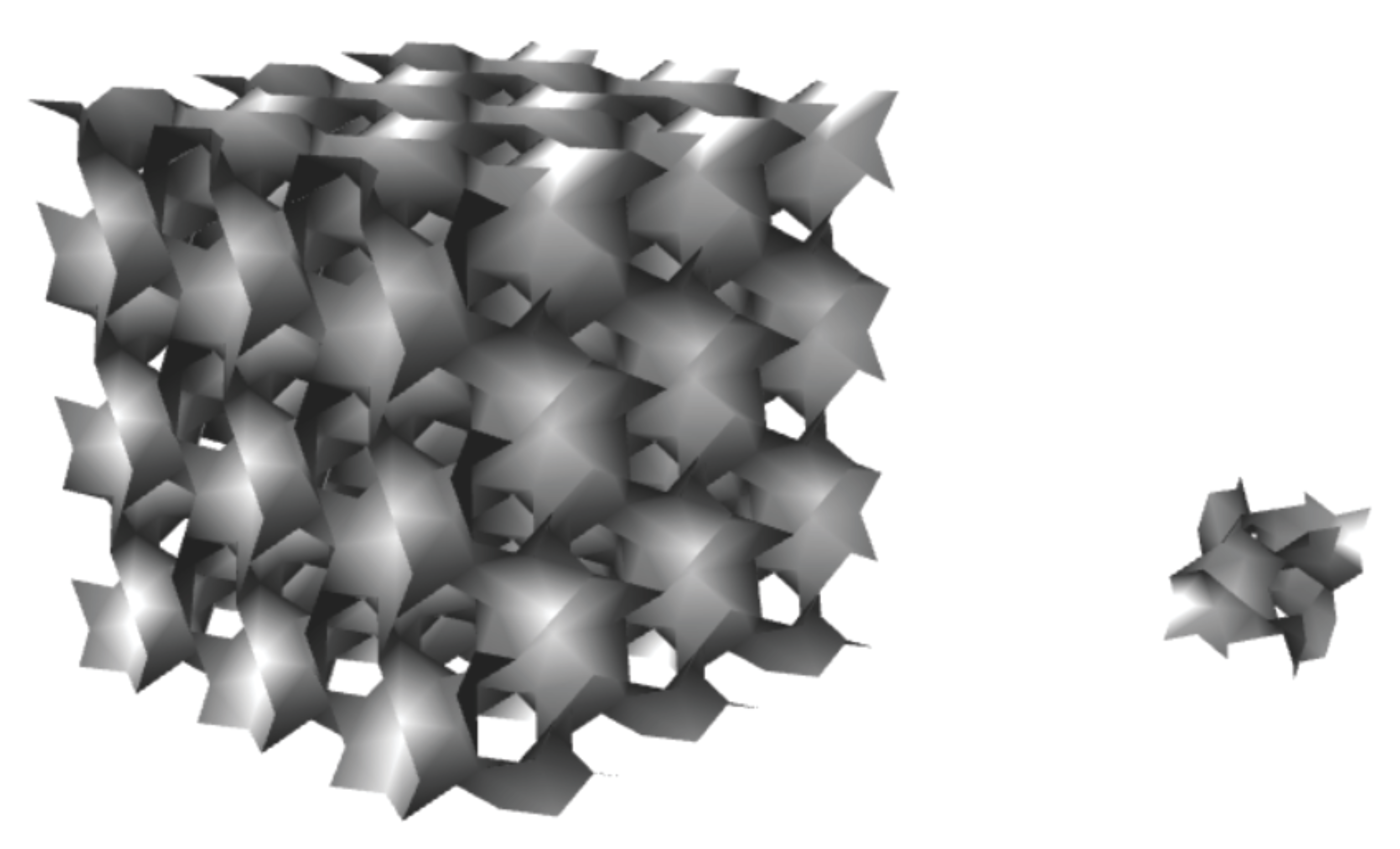

Fill voxels with shell unit cells. Use the Unit Cell Selector and Cell Type to choose from preset cells or create your own.

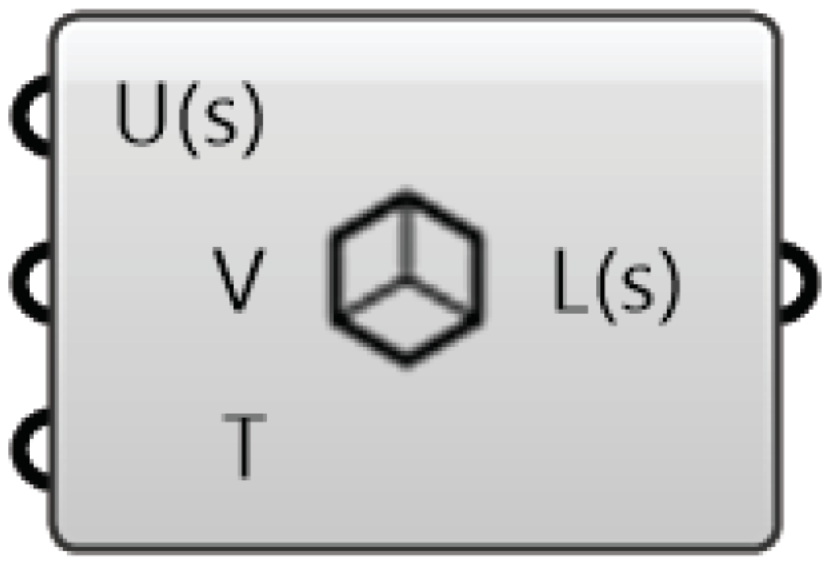

Inputs

• Unit Cell (shell) (U(s)) - [mesh] - Single unit cell to populate voxels
• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
• Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 -0.001)

Outputs

• Lattice (shell) (L(s)) - [mesh] - Joined mesh that makes up the lattice
