Tween Cell Fill (TCF)

Description

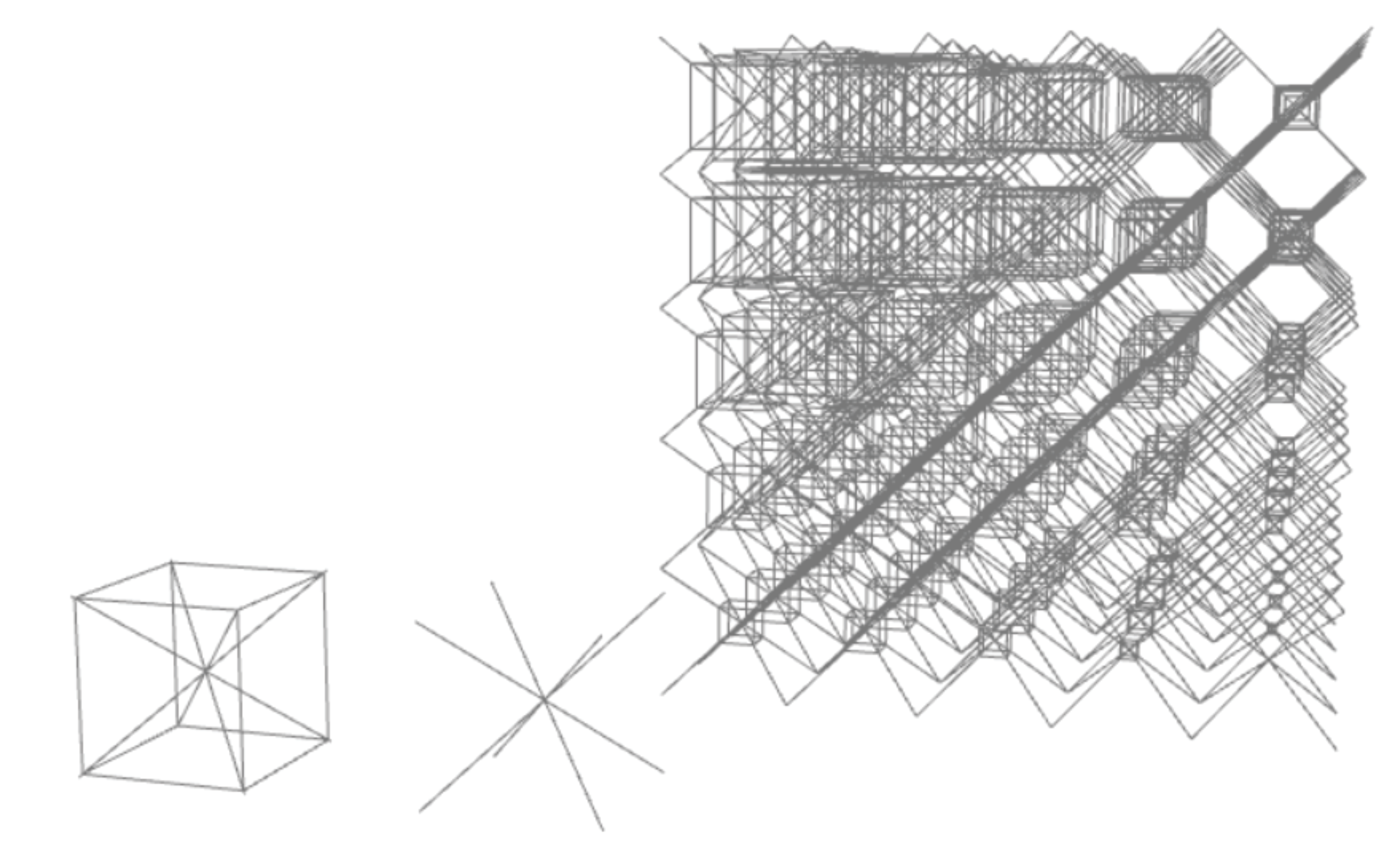

Fill voxels with morphed lattice unit cells. Use one of the ‘Cell Morph’ tools to create values for each voxel then use two ‘tween’ type unit cells to morph between. Values range from 0 (unit cell 1) to 1 (unit cell 2). Unit cells must have the same topology (same list of curves or nodes).

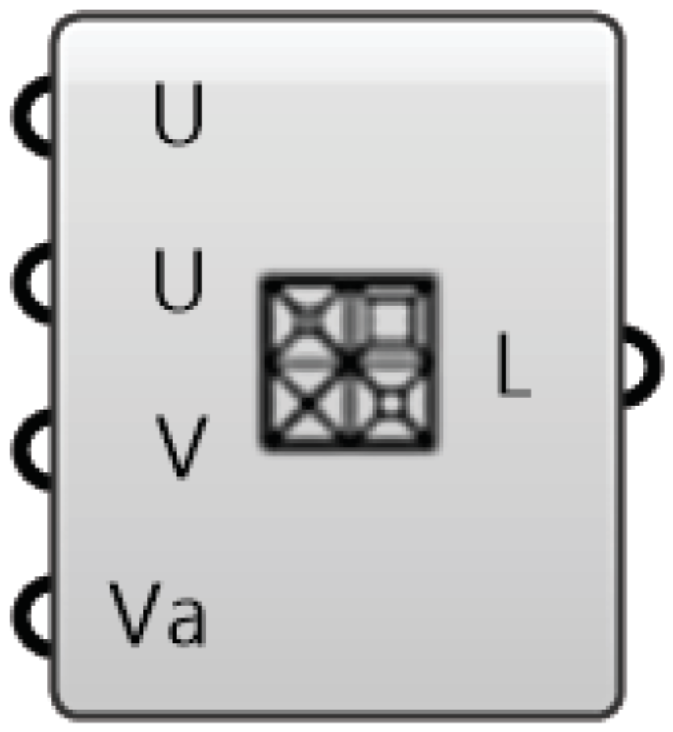

Inputs

Unit Cell 1 (U) - [curves] - Single unit cell to populate voxels
Unit Cell 2 (U) - [curves] - Single unit cell to populate voxels
Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
Values (Va) - [number] - List of values from 0-1 (flattened) corresponding to each voxel

Outputs

Lattice (L) - [curves] - List of curves that make up the lattice
