Tween Shell Fill (TSF)

Description

Fill voxels with morphed shell unit cells. Use one of the ‘Cell Morph’ tools to create values for each voxel then use two ‘tween’ type unit cells to morph between. Values range from 0 (unit cell 1) to 1 (unit cell 2). Unit cells must have the same topology (same list of curves or nodes).

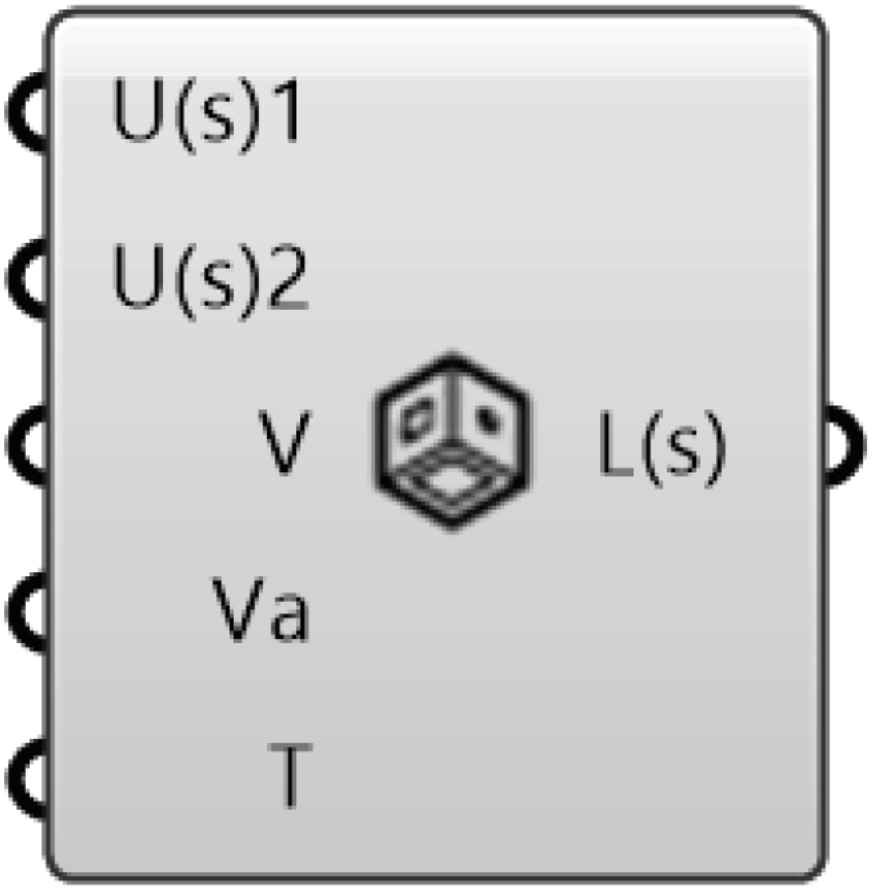

Inputs

Unit Cell 1 (U(s)1) - [mesh] - Single unit cell to populate voxels
Unit Cell 2 (U(s)2) - [mesh] - Single unit cell to populate voxels
Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
Values (Va) - [number] - List of values from 0-1 (flattened) corresponding to each voxel
Tolerance (T) - [number] - Tolerance for merging faces and vertices (~0.1 - 0.001)

Outputs

Lattice (shell) (L(s)) - [mesh] - Joined mesh that makes up the lattice
