Voronoi Fill (VF)

Voronoi Fill (VF)

Description

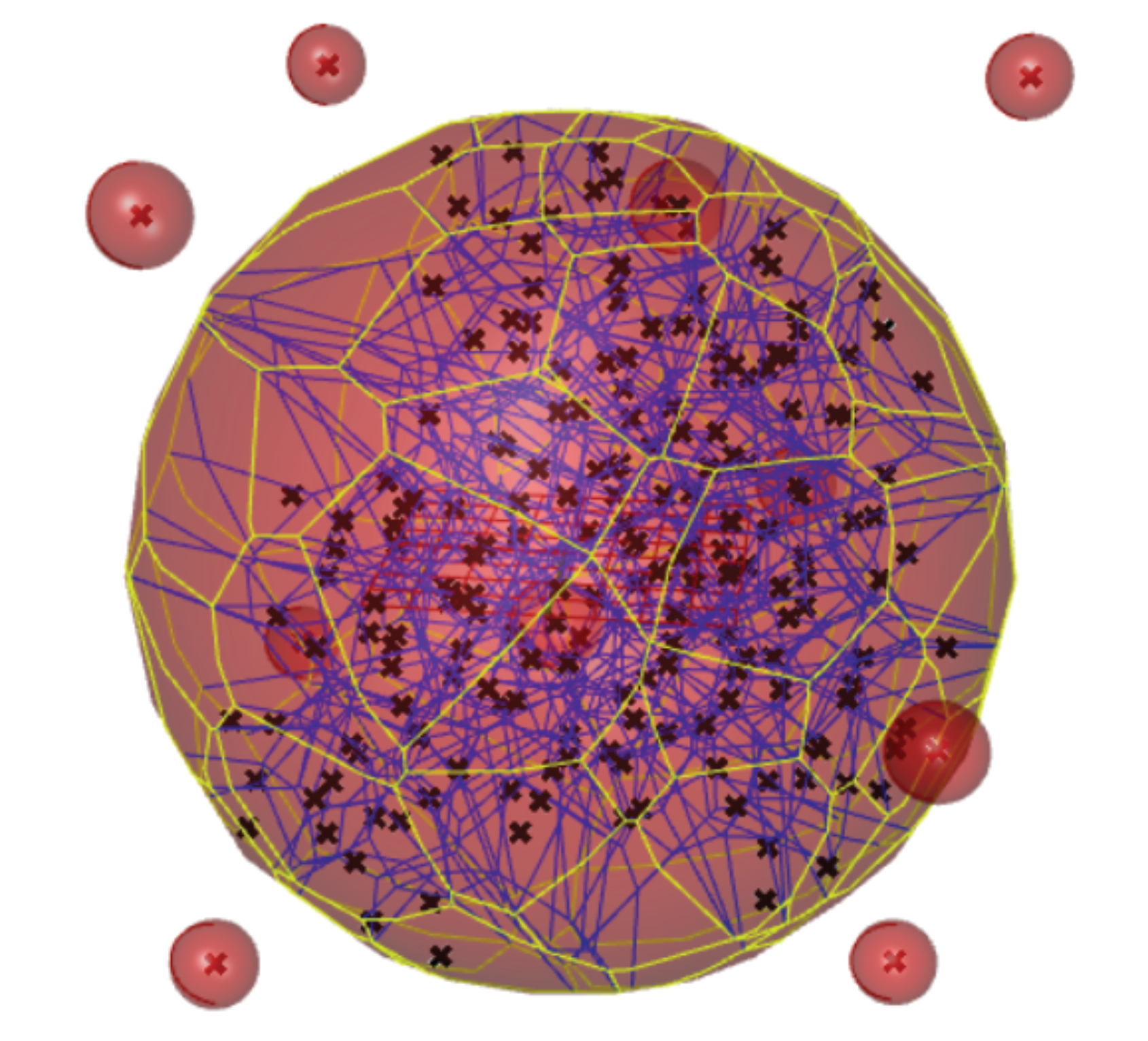

Fill a volume with randomized voronoi cells. Use attractors to vary the density.

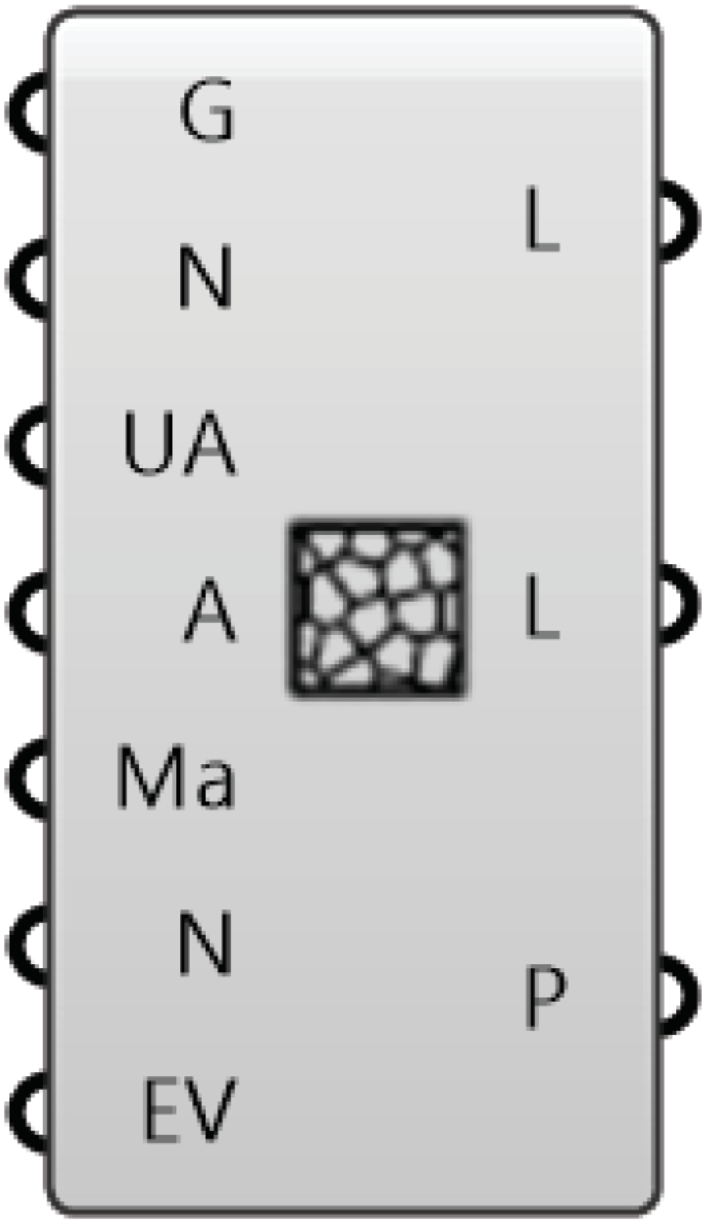

Inputs

  • Geometry (G) - [geometry] - Geometry to fill
  • Number of points (N) - [number] - The initial number of random points to fill the volume
  • Use Attractor (UA) - [boolean] - If true, points will be filtered by distance to attractor(s)
  • Attractor (A) - [geometry] - Any geometry to use as attractor(s)
  • Magnitude (Ma) - [number] - Magnitude of the random filtering
  • Number of filtered points (N) - [number] - The number of points to filter
  • Enable Voronoi (EV) - [boolean] - If true, voronoi cells will be generated (can be very slow)

Outputs

  • Voronoi Lattice (L) - [curves] - List of curves that make up the voronoi lattice
  • Voronoi Lattice Skin (L) - [curves] - List of curves that make up the voronoi skin
  • Preview Points (P) - [points] - Preview of points that will make up the voronoi lattice
