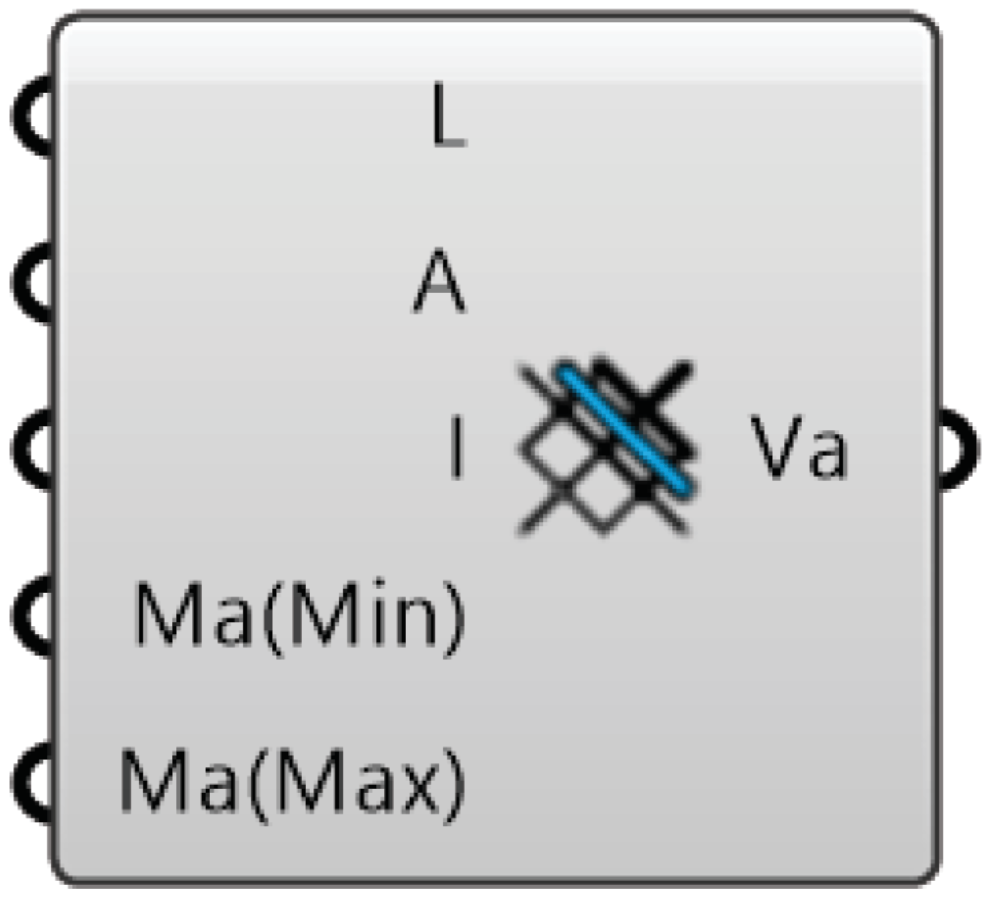

Lattice Thickness Attractor (LTa)

Description

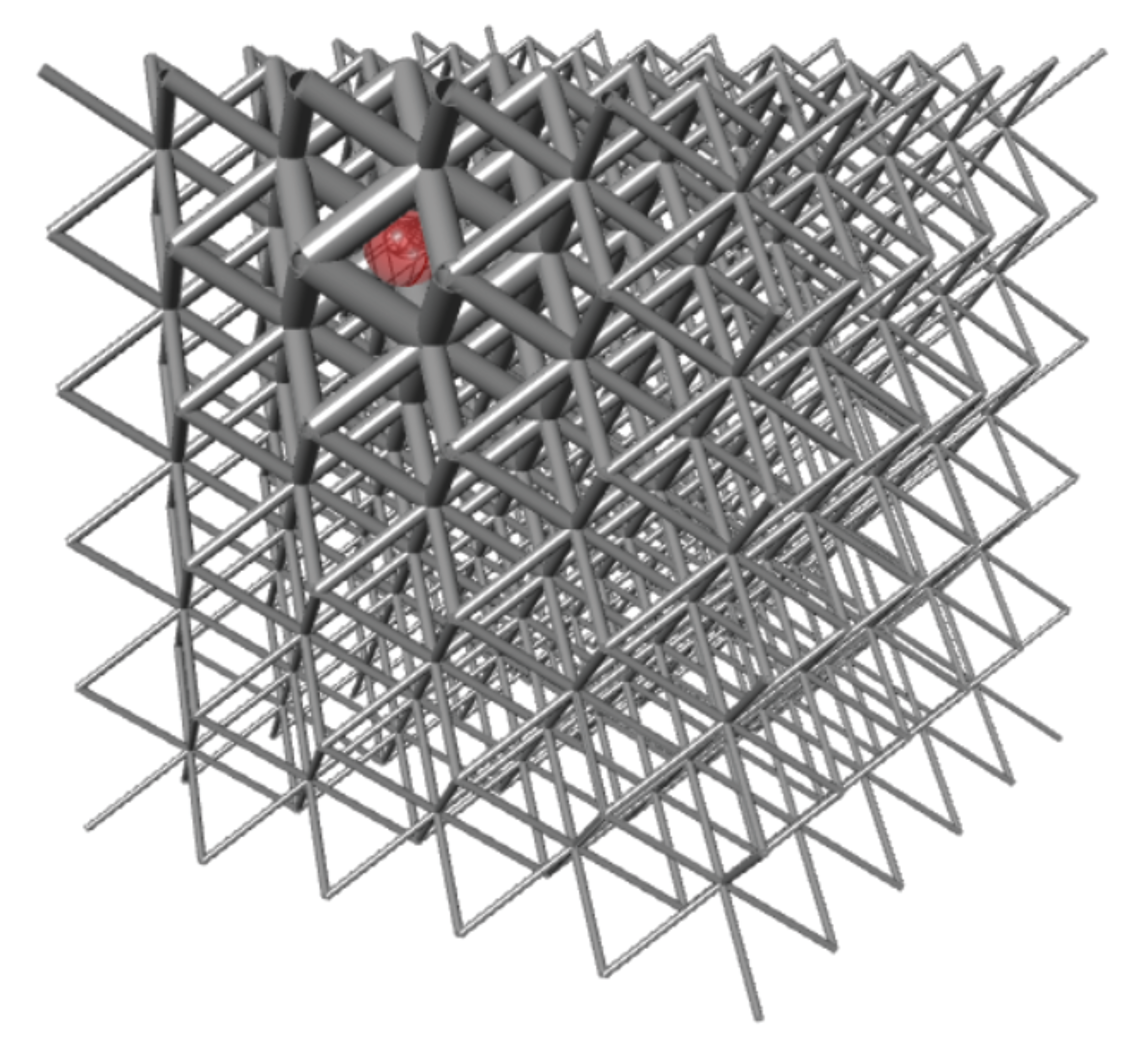

Apply thickness values to lattice curves with attractor(s). The output will be one value for each curve.

Inputs

• Lattice (L) - [curves] - Lattice to thicken
• Attractor (A) - [geometry] - Any geometry to use as attractor(s)
• Influence (I) - [number] - Smoothed range of attractor influence (0-1)
• Magnitude (min) (Ma(min)) - [number] - Lattice beam thickness (minimum)
• Magnitude (max) (Ma(max)) - [number] - Lattice beam thickness (maximum)

Outputs

• Values (Va) - [number] - List of beam thickness values corresponding to each lattice curve
