Lattice Thickness Value (LTv)

Description

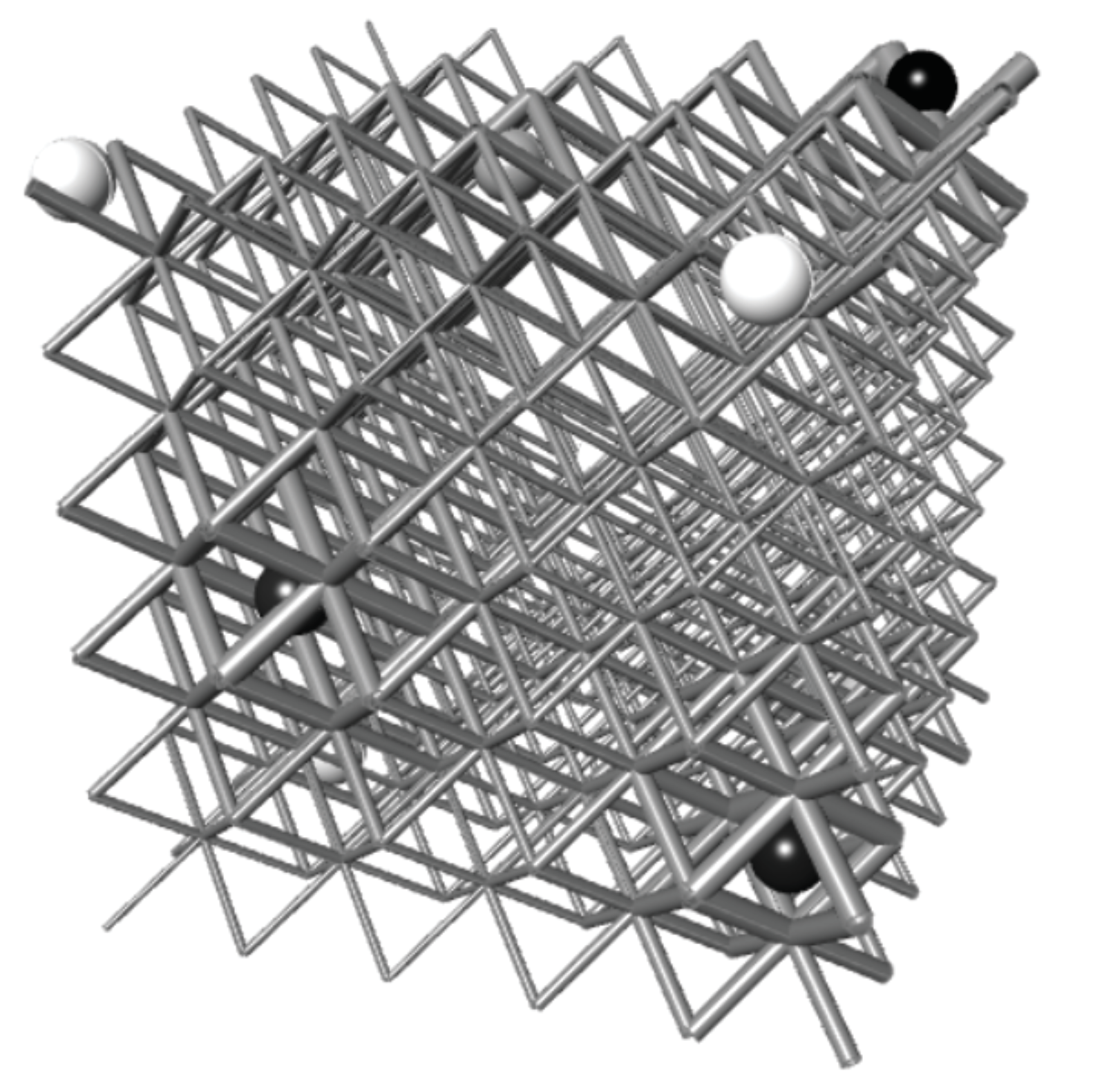

Apply thickness values to lattice curves with a point cloud and corresponding values. The output will be one value for each curve.

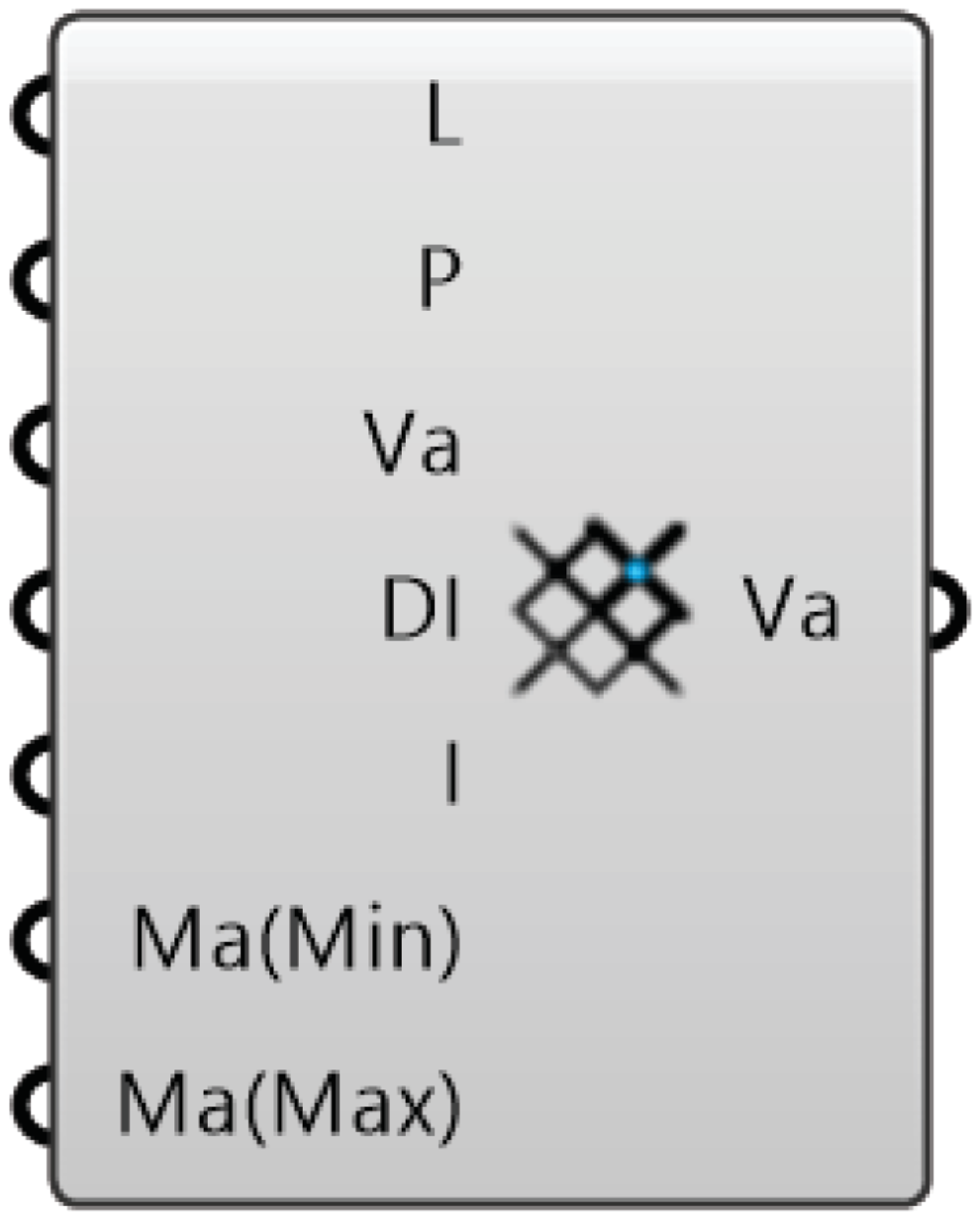

Inputs

• Lattice (L) - [curves] - Lattice to thicken
• Points (S) - [point] - List of points (flattened)
• Values (Va) - [number] - List of values that correspond to points (flattened)
• Distance Influence (DI) - [boolean] - If true the distance between the points
• and voxels will affect the magnitude
• Influence (I) - [number] - Smoothed range of attractor influence (0-1)
• Magnitude (min) (Ma(min)) - [number] - Lattice beam thickness (minimum)
• Magnitude (max) (Ma(max)) - [number] - Lattice beam thickness
• (maximum)

Outputs

• Values (Va) - [number] - List of beam thickness values corresponding to each lattice curve
