Shell Thickness Attractor (STa)

Description

Apply thickness values to shell vertices with attractor(s). The output will be one value for each vertex of the mesh (useful for Weaverbird’s ‘Mesh Thicken’ tool).

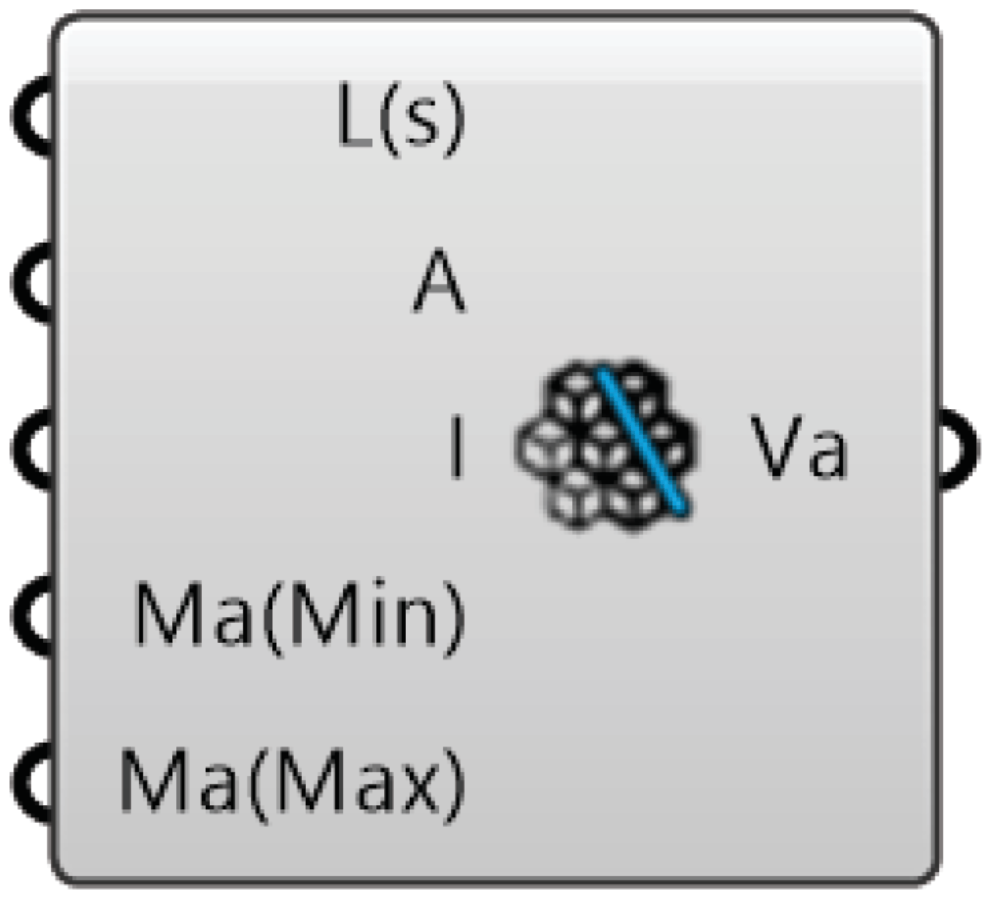

Inputs

• Lattice (shell) (L(s)) - [mesh] - Lattice to thicken
• Attractor (A) - [geometry] - Any geometry to use as attractor(s)
• Influence (I) - [number] - Smoothed range of attractor influence (0-1)
• Magnitude (min) (Ma(min)) - [number] - Lattice shell thickness (minimum)
• Magnitude (max) (Ma(max)) - [number] - Lattice shell thickness (maximum)

Outputs

• Values (Va) - [number] - List of beam thickness values corresponding to each shell vertex
