Shell Thickness Value (STv)

Description

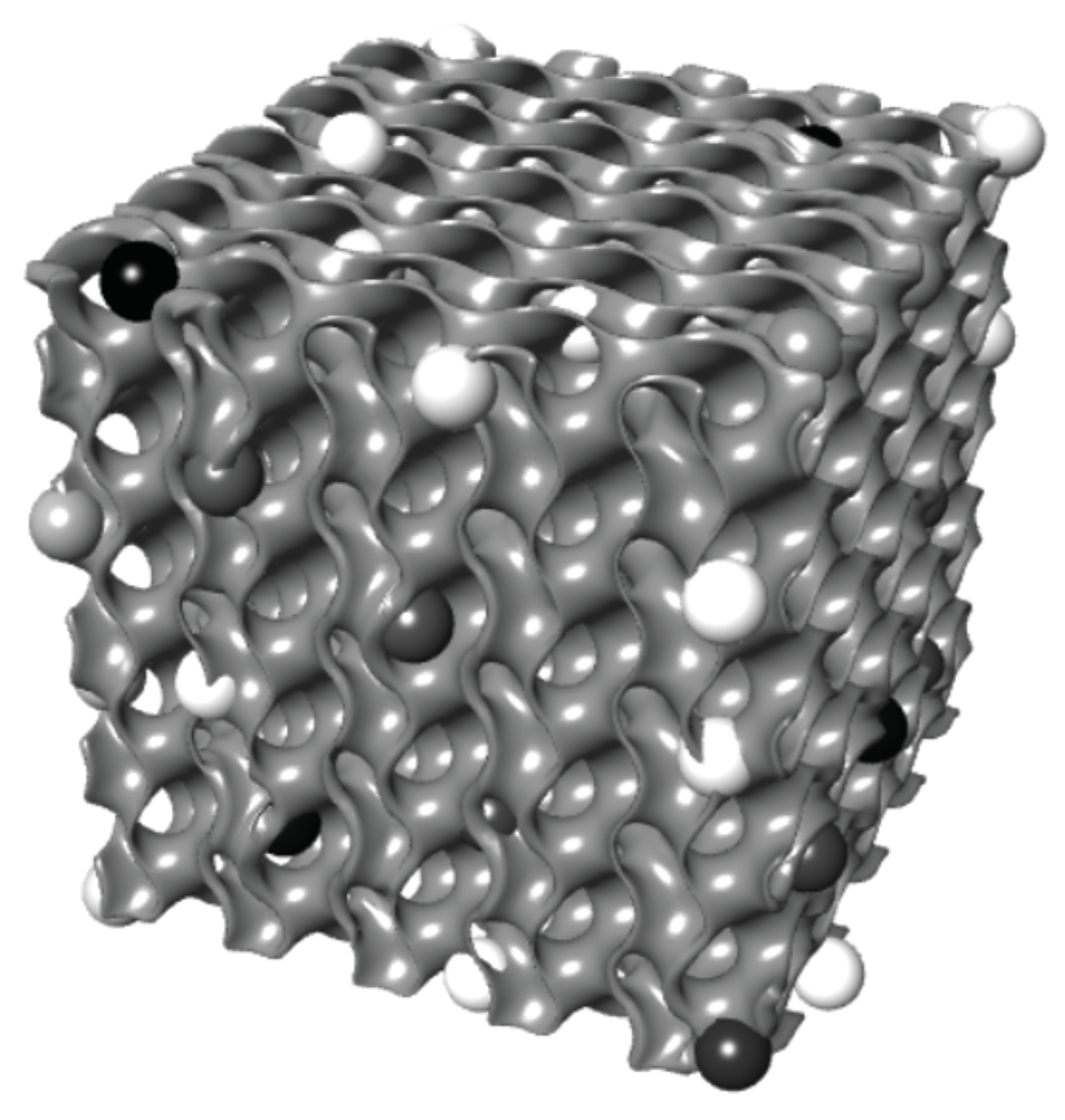

Apply thickness values to shell vertices with a point cloud and corresponding values. The output will be one value for each vertex of the mesh (useful for Weaverbird’s ‘Mesh Thicken’ tool).

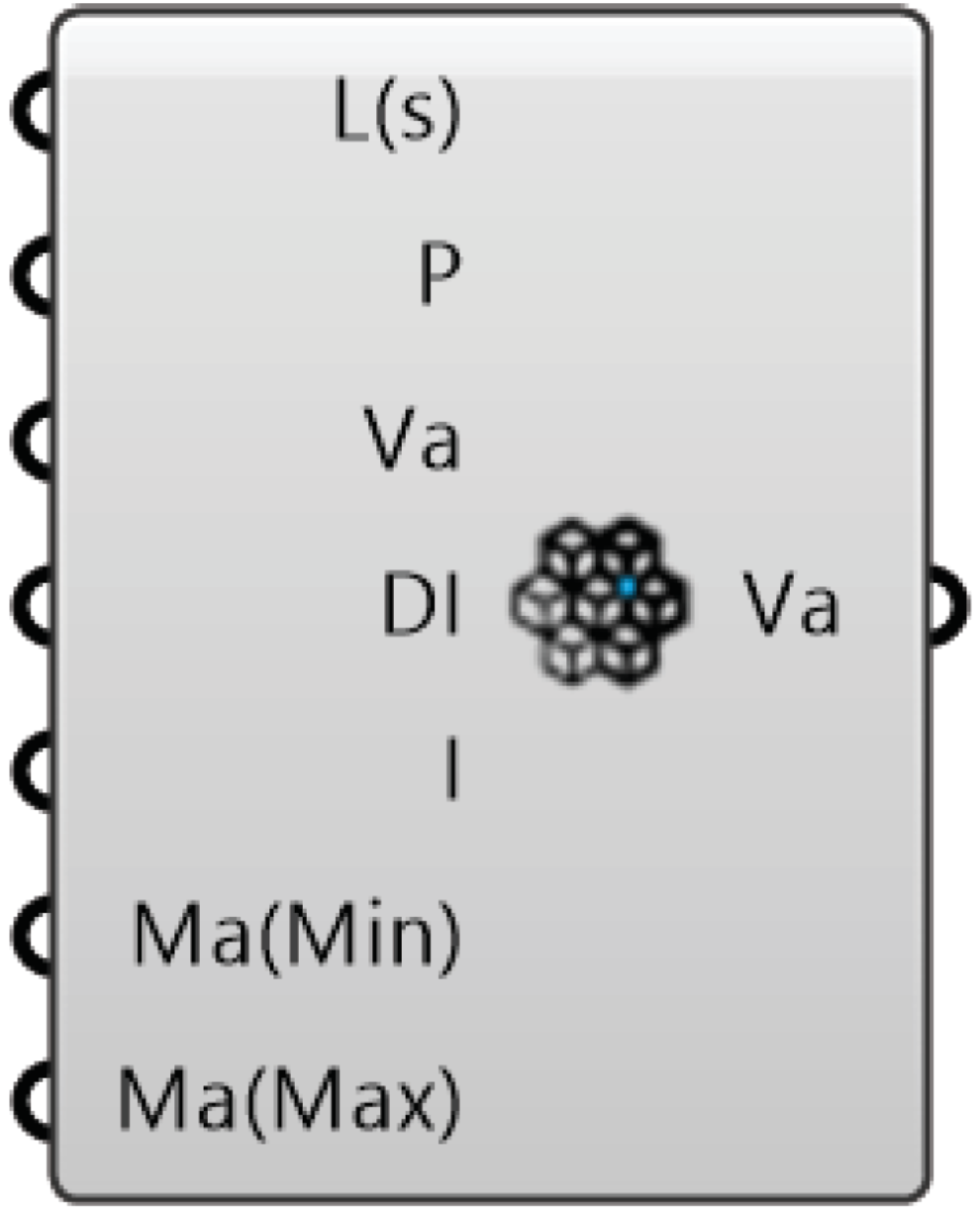

Inputs

Lattice (shell) (L(s)) - [mesh] - Lattice to thicken
Points (S) - [point] - List of points (flattened)
Values (Va) - [number] - List of values that correspond to points (flattened)
Distance Influence (DI) - [boolean] - If true the distance between the points
and voxels will affect the magnitude
Influence (I) - [number] - Smoothed range of attractor influence (0-1)
Magnitude (min) (Ma(min)) - [number] - shell thickness (minimum)
Magnitude (max) (Ma(max)) - [number] - shell thickness (maximum)

Outputs

Values (Va) - [number] - List of thickness values corresponding to each shell vertex
