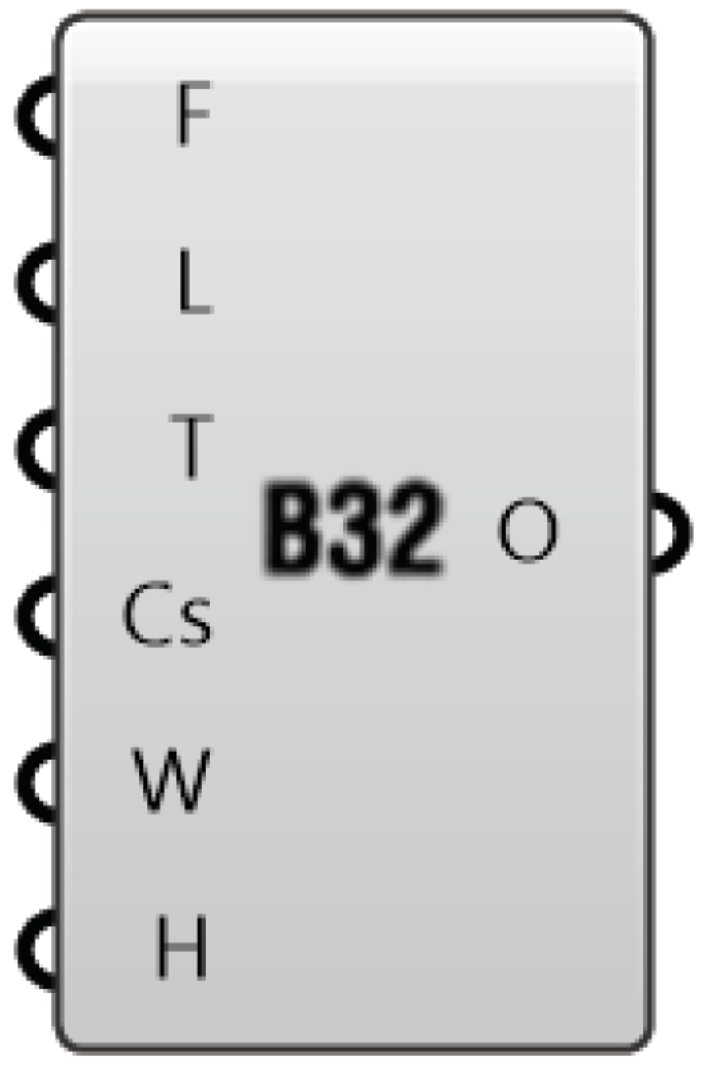

INP B32 (B32)

Description

Create a B32 INP file from a lattice

Inputs

• Filename (F) - [text] - Name of file (also NSET, ELSET, etc)
• Lattice Curves (L) - [curve] - Lattice curves
• Tolerance (T) - [number] - Tolerance to merge points
• Cross Section (Cs) - [text] - True if CIRC, false if RECT
• Width (W) - [number] - Width of cross section
• Height (H) - [number] - Height of cross section

Outputs

• Output (O) - [text] - output text (copy and paste contents to a text editor and save with *.inp extension)
