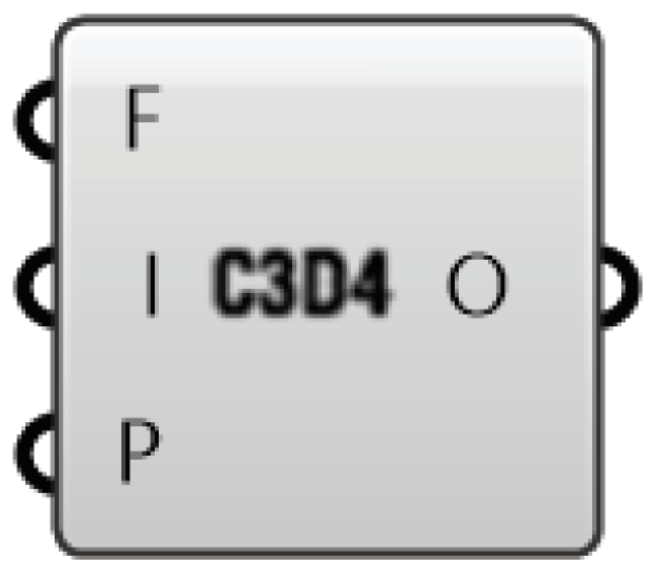

INP C3D4 (C3D4)

INP C3D4 (C3D4)

Description

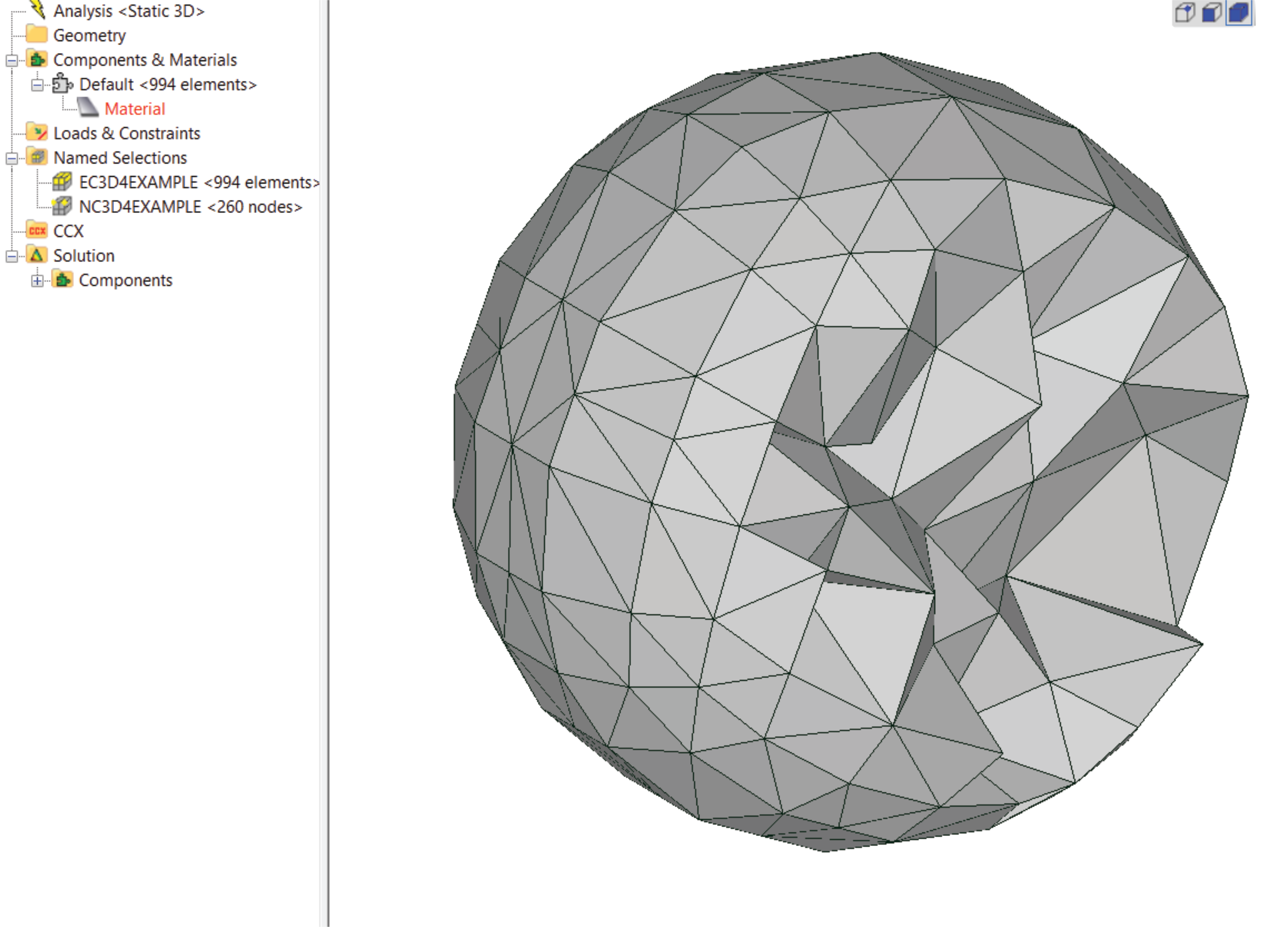

Creates a C3D4 INP file from a tetrahedral mesh (requires Tetrino https://www.food4rhino.com/app/tetrino)

Inputs

  • Filename (F) - [text] - Name of file (also NSET, ELSET, etc)
  • Indices (I) - [number] - Indices of tetrahedrons (”I” output of Tetgen)
  • Points (P) - [point] - Points of tetrahedral mesh (”P” output of Tetgen)

Outputs

  • Output (O) - [text] - output text (copy and paste contents to a text editor and save with *.inp extension)
