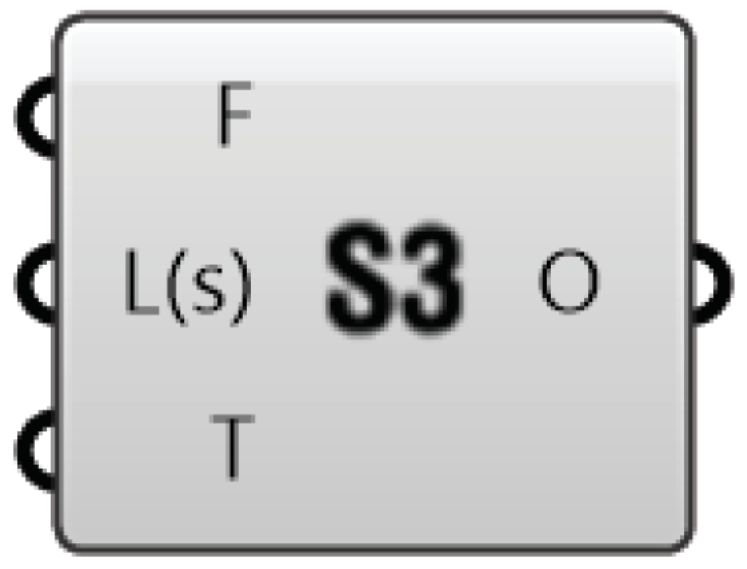

INP S3 (S3)

INP S3 (S3)

Description

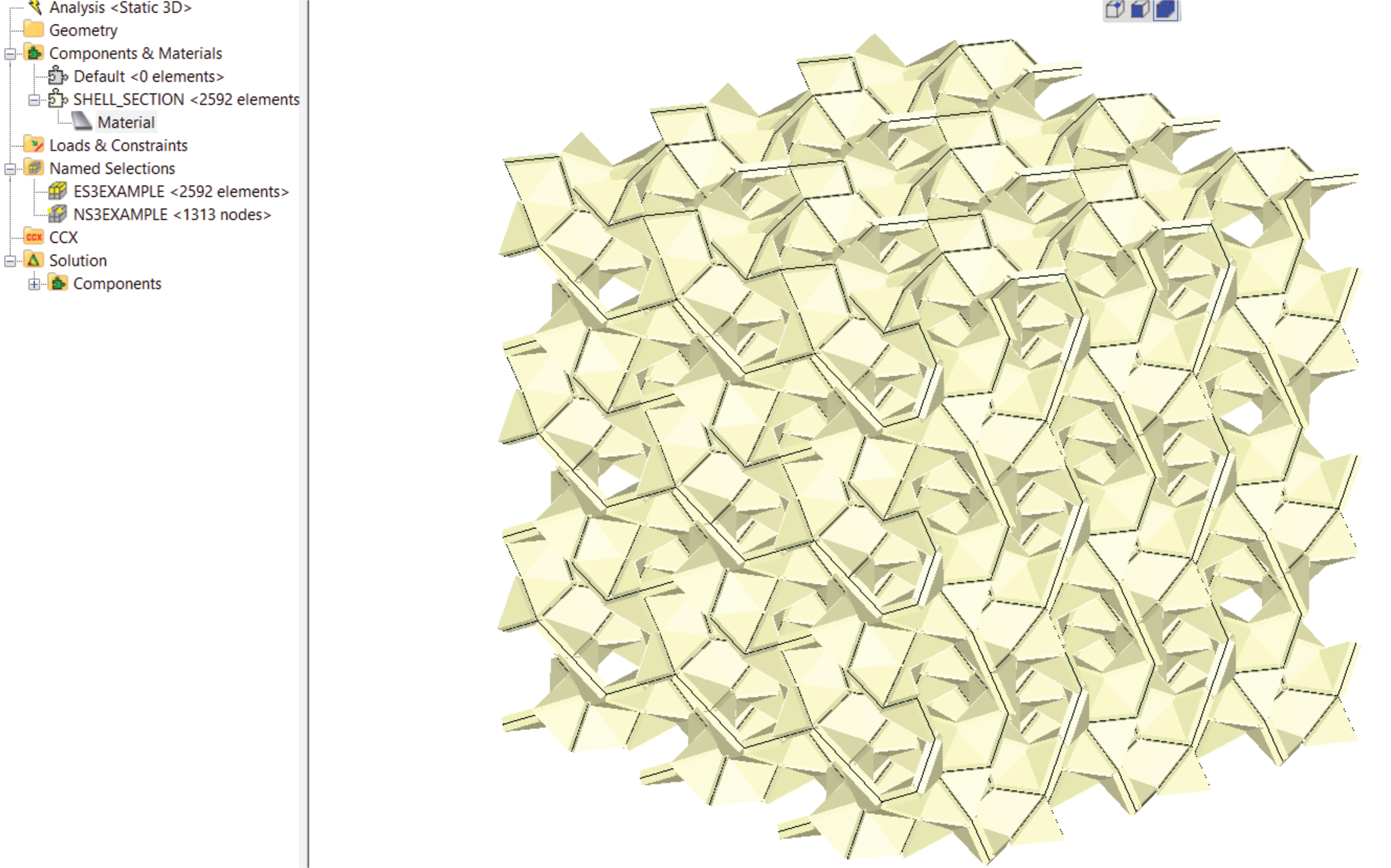

Create a S3 INP file from a triangle based shell.

Inputs

  • Filename (F) - [text] - Name of file (also NSET, ELSET, etc)
  • Lattice shell (L(s)) - [mesh] - Lattice shell (as joined mesh)
  • Thickness (T) - [number] - Thickness of cross section

Outputs

  • Output (O) - [text] - output text (copy and paste contents to a text editor and save with *.inp extension)
