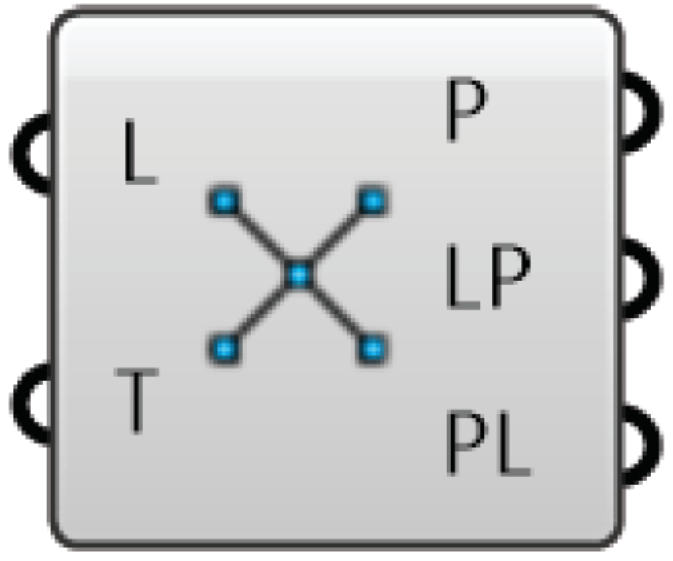

Lattice Topology (LT)

Description

Creates a clean graph from a lattice with unique nodes and their connections

Inputs

• Lattice (L) - [curves] - Lattice curves
• Tolerance (T) - [number] - Tolerance to merge points

Outputs

• Nodes (P) - [point] - sorted unique points in the network
• Line-Point Connections (LP) - [number] - Index of points that make up each beam
• Point-Line Connections (PL) - [number] - For each point, lists the index of the lines connected to it
