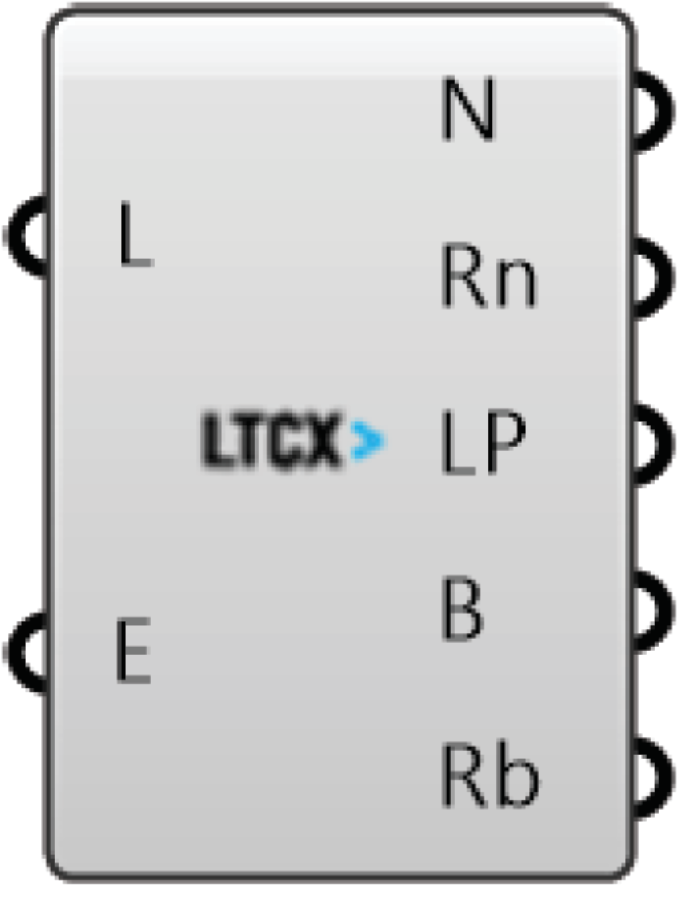

LTCX Reader (LXI)

Description

Reads a LTCX file and outputs beams and radii

Inputs

• File path (L) - [text] - File path of .ltcx file
• Enable beams (E) - [boolean] - Enable the generation of beam curves

Outputs

• Nodes (P) - [point] - Nodes in the network
• Node radius (Rn) - [number] - a list of radii for each node
• Line-point connection (LP) - [number] - index of points that make up each beam
• Beam curves (B) - [curve] - If enabled, the beams as curves
• Beam Radius (Rb) - [number] - The radii of each beam (average of two nodes)
