LTCX Writer (LXO)

Description

Creates a LTCX file format from a beam based lattice

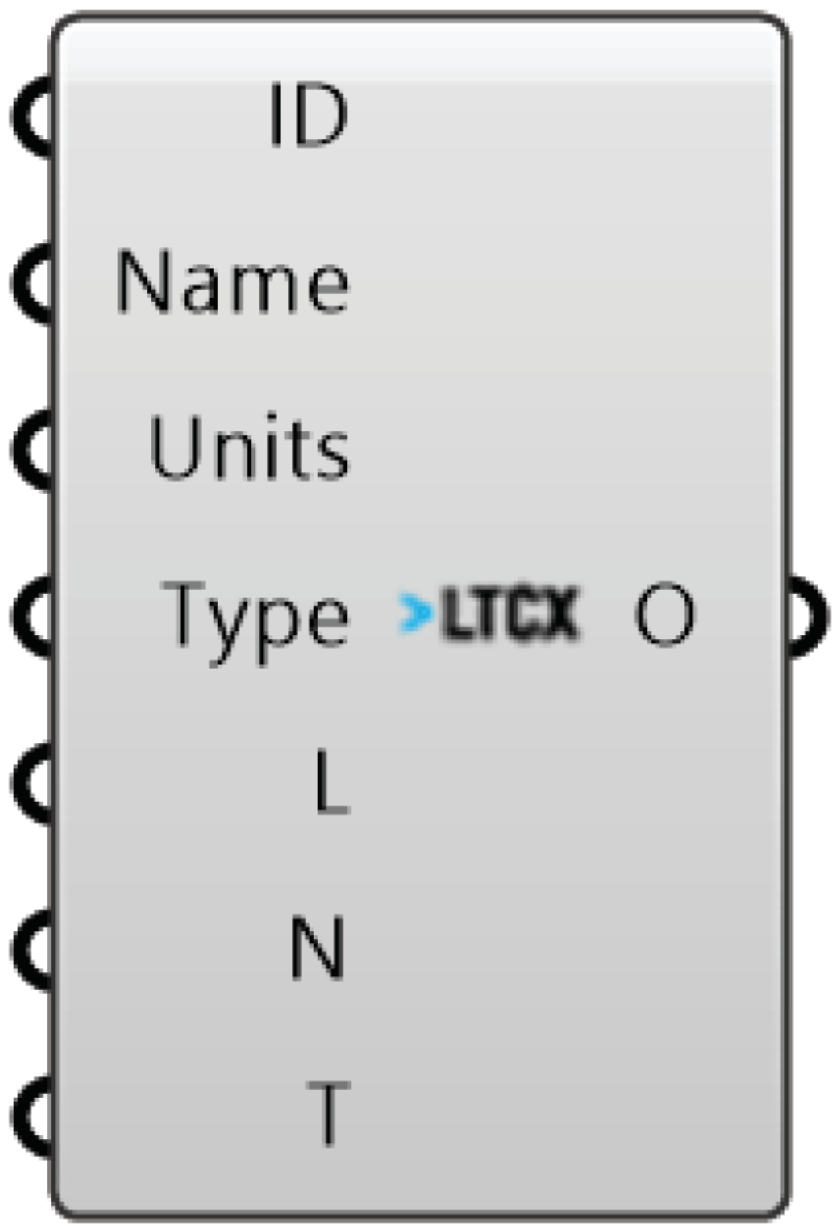

Inputs

• Graph ID (ID) - [text] - id, unique (within the file) integer
• Name (Name) - [text] - File name
• Units (Units) - [text] - Units (in/mm/cm/m/ft)
• Type (Tye) - [text] - Cross section (rnd)
• Lattice Curves (L) - [curve] - Lattice curves
• Node Radius (N) - [number] - List of beam radii that will be averaged to each node
• Tolerance (T) - [number] - Tolerance to merge points

Outputs

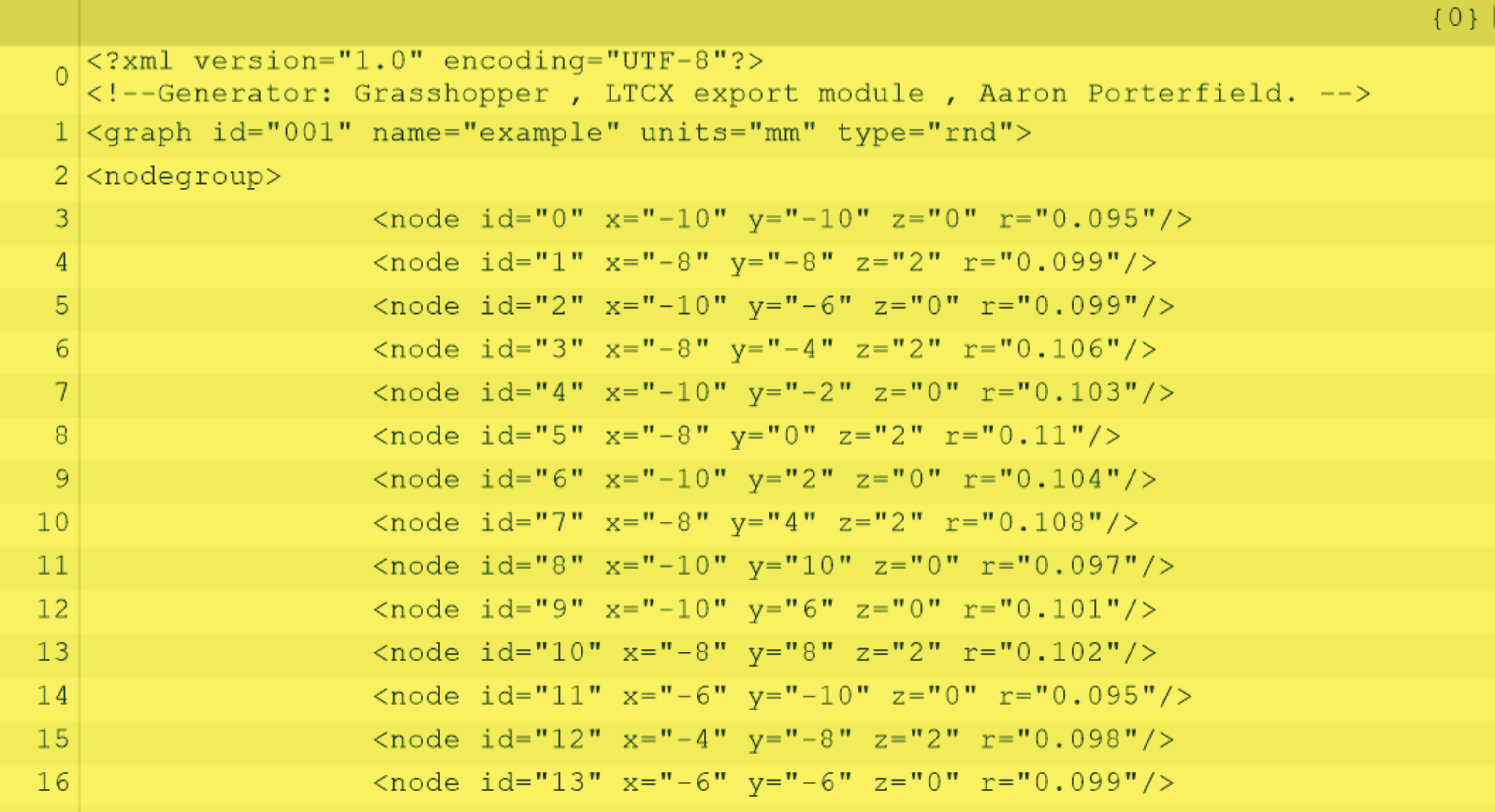

• Output (O) - [text] - output text (copy and paste contents to a text editor and save with *.ltcx extension)
