Conformal Pipe Distance (CPd)

Description

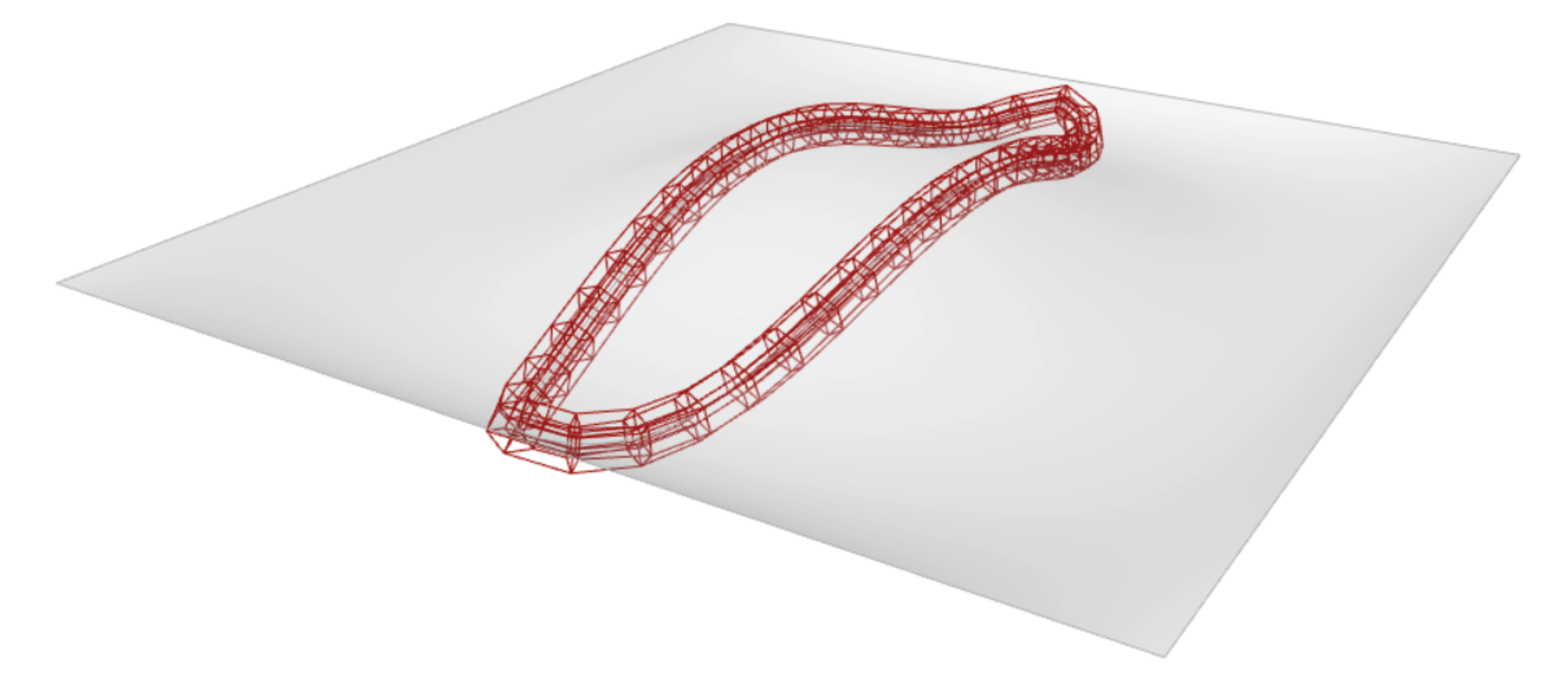

Create a pipe of equal length voxels along a curve on a surface.

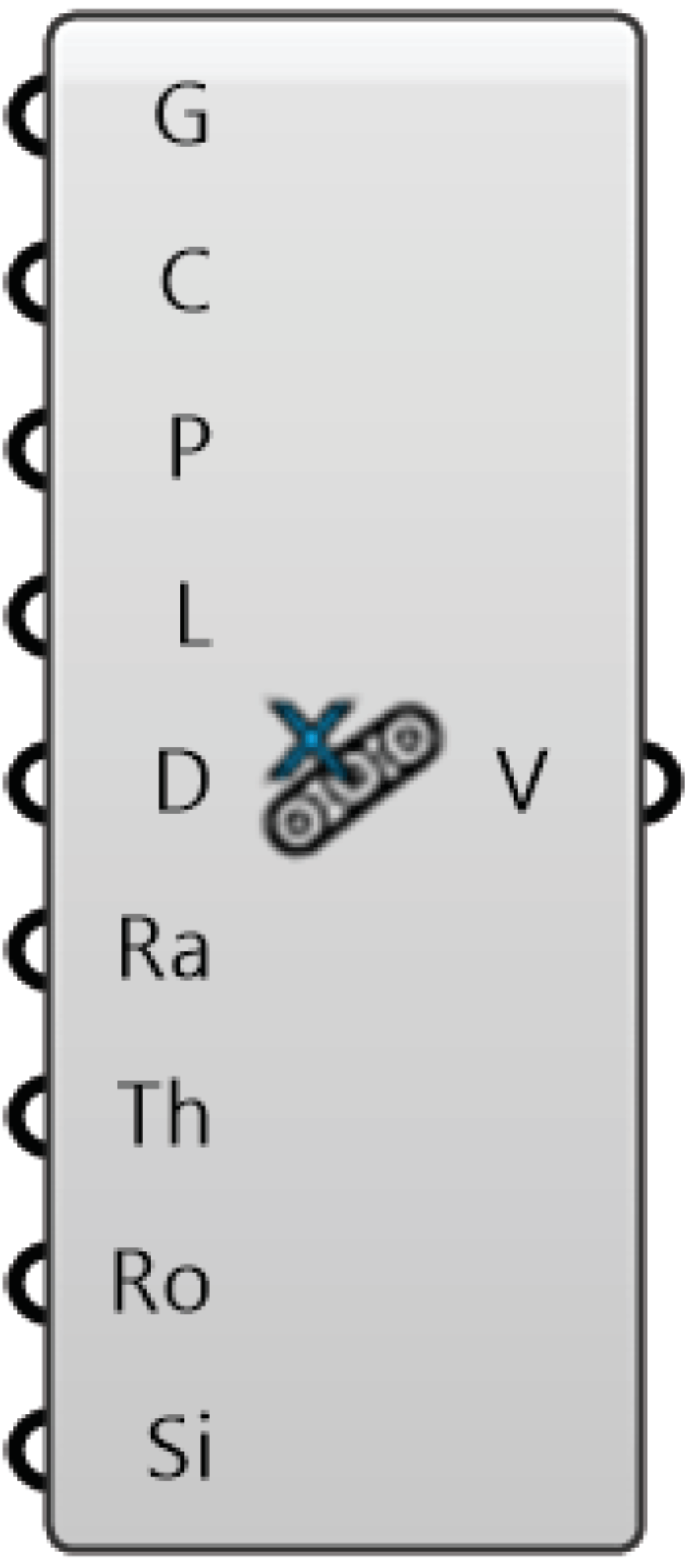

Inputs

• Geometry (G) - [geometry] - Geometry to conform to (mesh or brep)
• Curve (C) - [curve] - Curve to voxelize
• Periodic (P) - [boolean] - True if curve is closed
• Length (L) - [number] - Length of voxels
• Distance (D) - [number] - Distance from surface
• Radius (Ra) - [number] - Inner radius of pipe
• Thickness (Th) - [number] - Thickness of pipe
• Rotation (Ro) - [number] - Rotation (in degrees)
• Sides (Si) - [number] - Number of sides of pipe

Outputs

• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
