Conformal Pipe Parameter (CPp)

Description

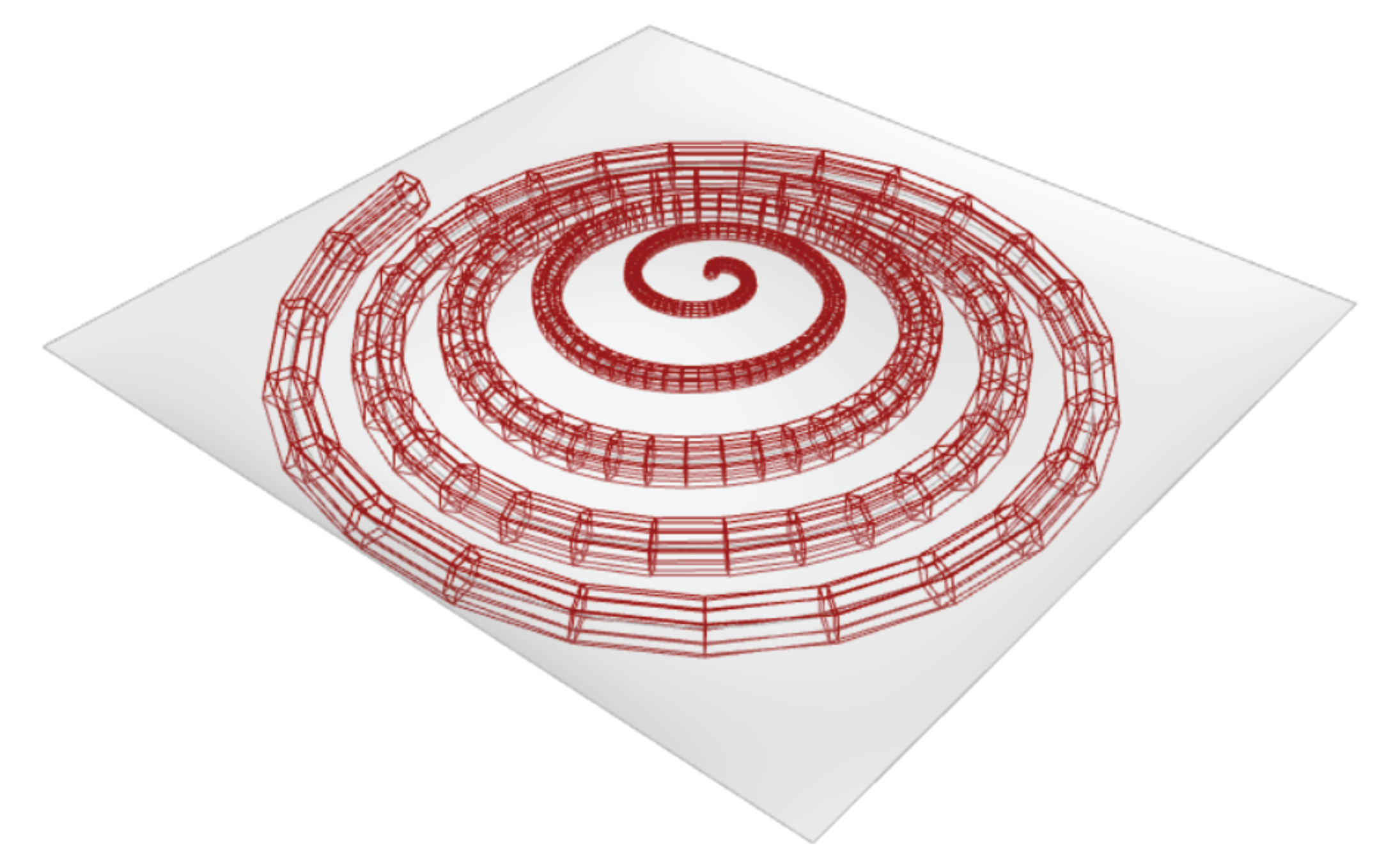

Create a pipe of varying length and size voxels along a curve on a surface.

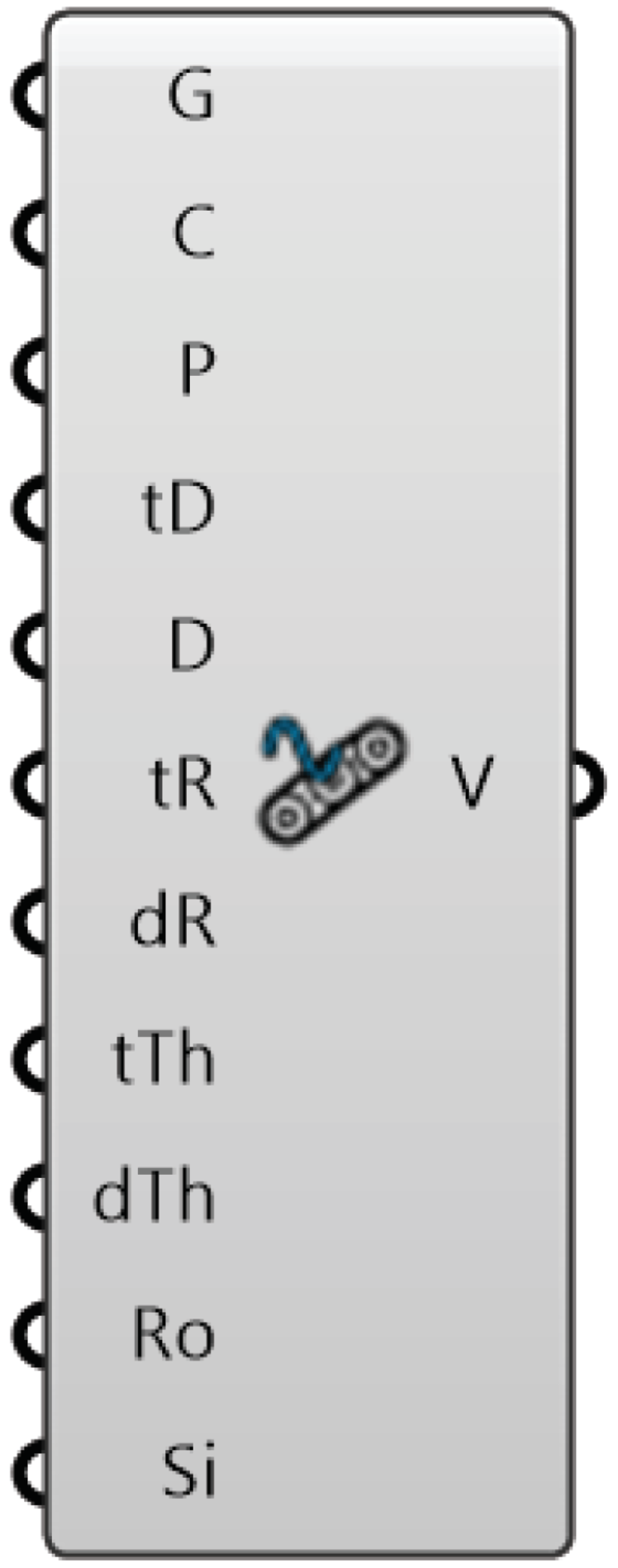

Inputs

• Geometry (G) - [geometry] - Geometry to conform to (mesh or brep)
• Curve (C) - [curve] - Curve to voxelize
• Periodic (P) - [boolean] - True if curve is closed
• Division Parameter (tD) - [number] - Parameter for voxel divisions (0-1)
• Distance (D) - [number] - Distance from surface
• Radius Parameter (tR) - [number] - Parameter for radius (0-1)
• Radius Domain (dR) - [domain] - Domain for radius
• Thickness Parameter (tTh) - [number] - Parameter for thickness (0-1)
• Thickness Domain (dTh) - [domain] - Domain for thickness
• Rotation (Ro) - [number] - Rotation (in degrees)
• Sides (Si) - [number] - Number of sides of pipe

Outputs

• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
