Conformal Rib Distance (CRd)

Description

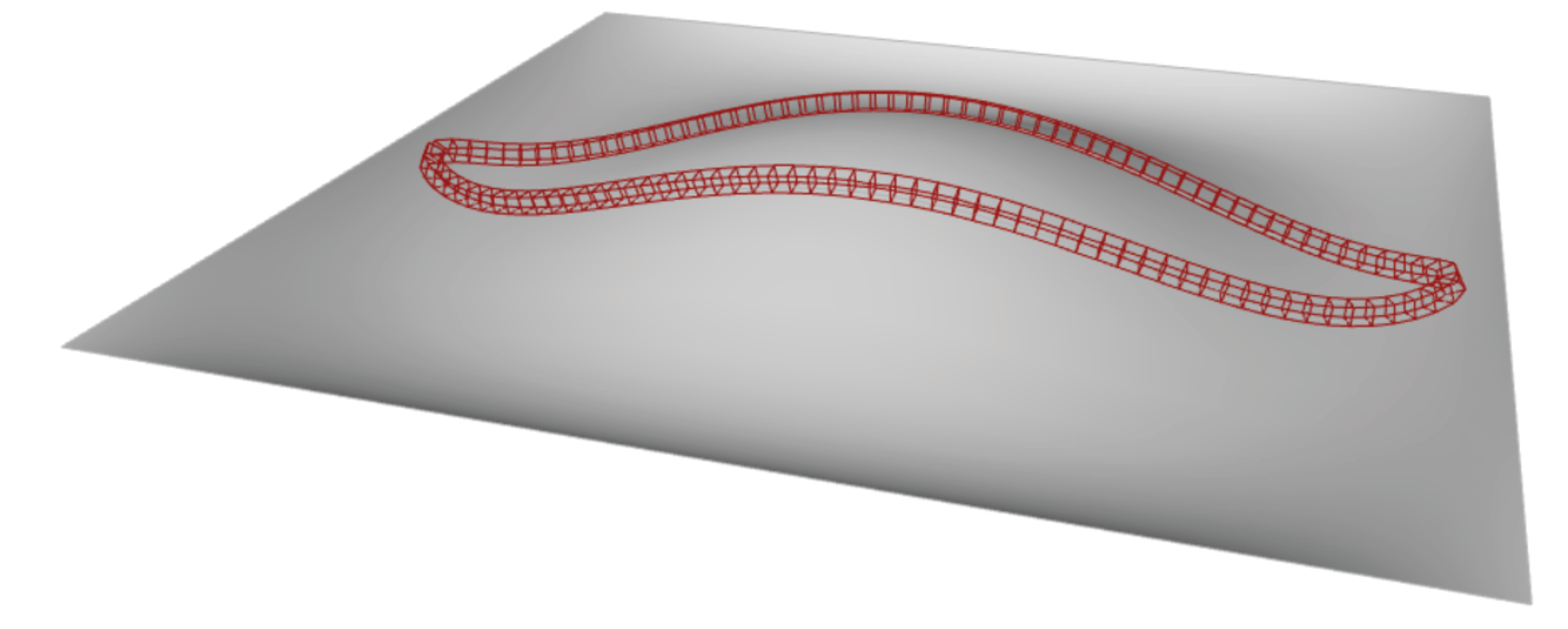

Create a row of equal length voxels along a curve on a surface (mesh or brep).

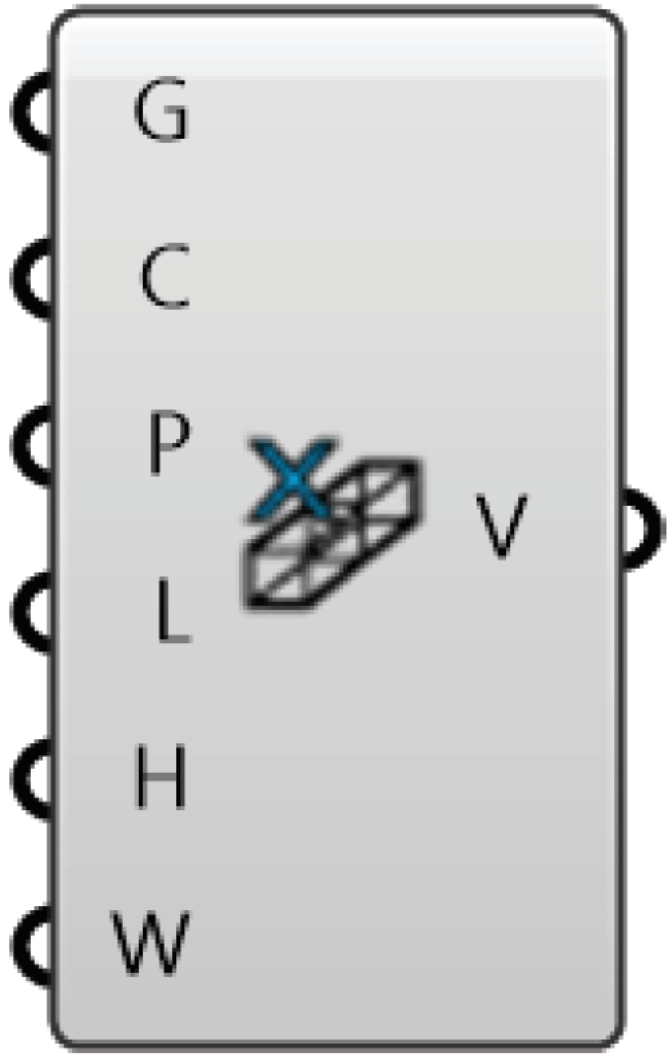

Inputs

• Geometry (G) - [geometry] - Geometry to conform to (mesh or brep)
• Curve (C) - [curve] - Curve to voxelize
• Periodic (P) - [boolean] - True if curve is closed
• Length (L) - [number] - Length of voxels
• Height (H) - [number] - Height of voxels
• Width (W) - [number] - Width of voxels

Outputs

• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
