Conformal Rib Parameter (CRp)

Description

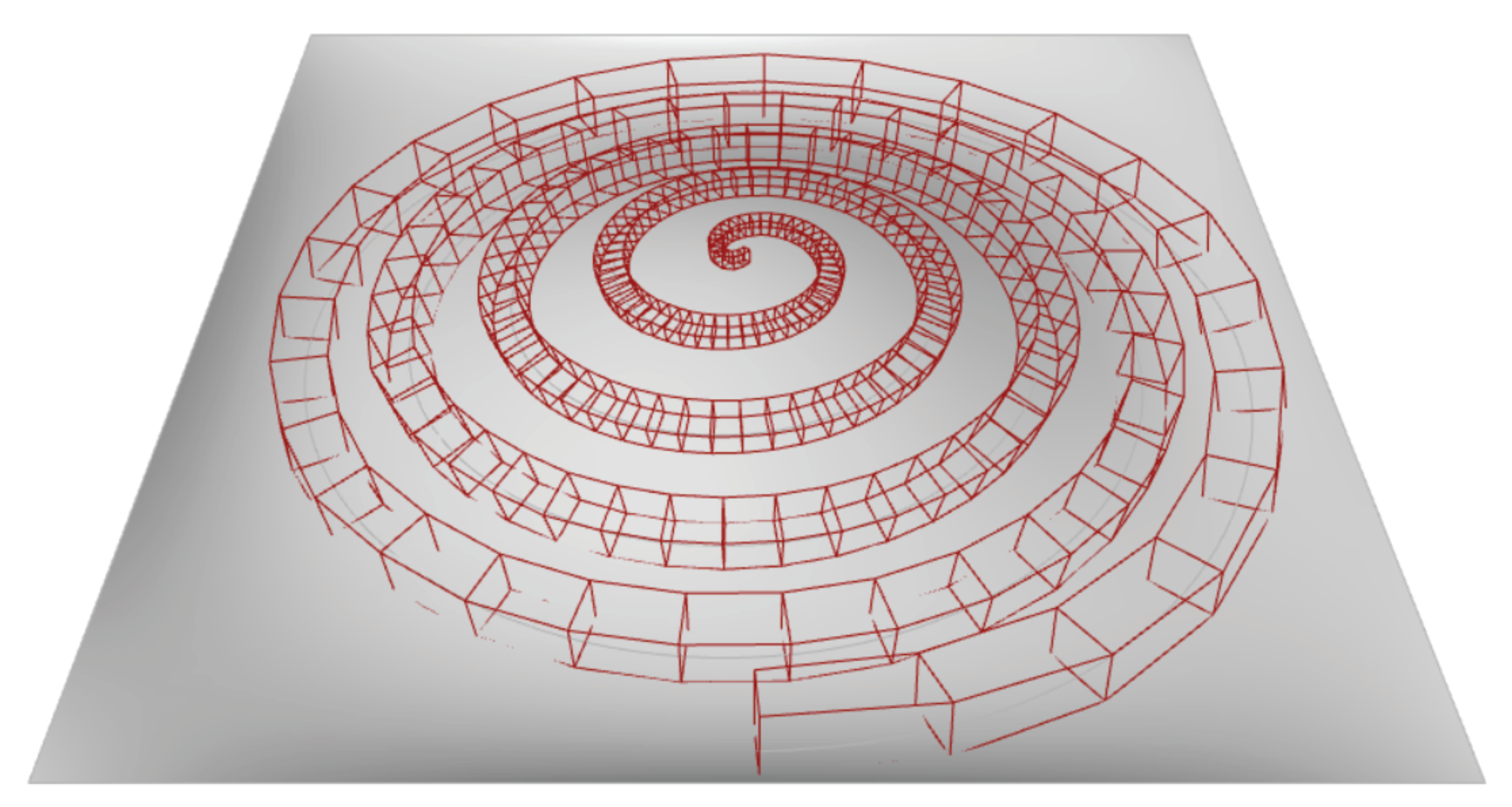

Create a row of varying length voxels along a curve on a surface (mesh or brep).

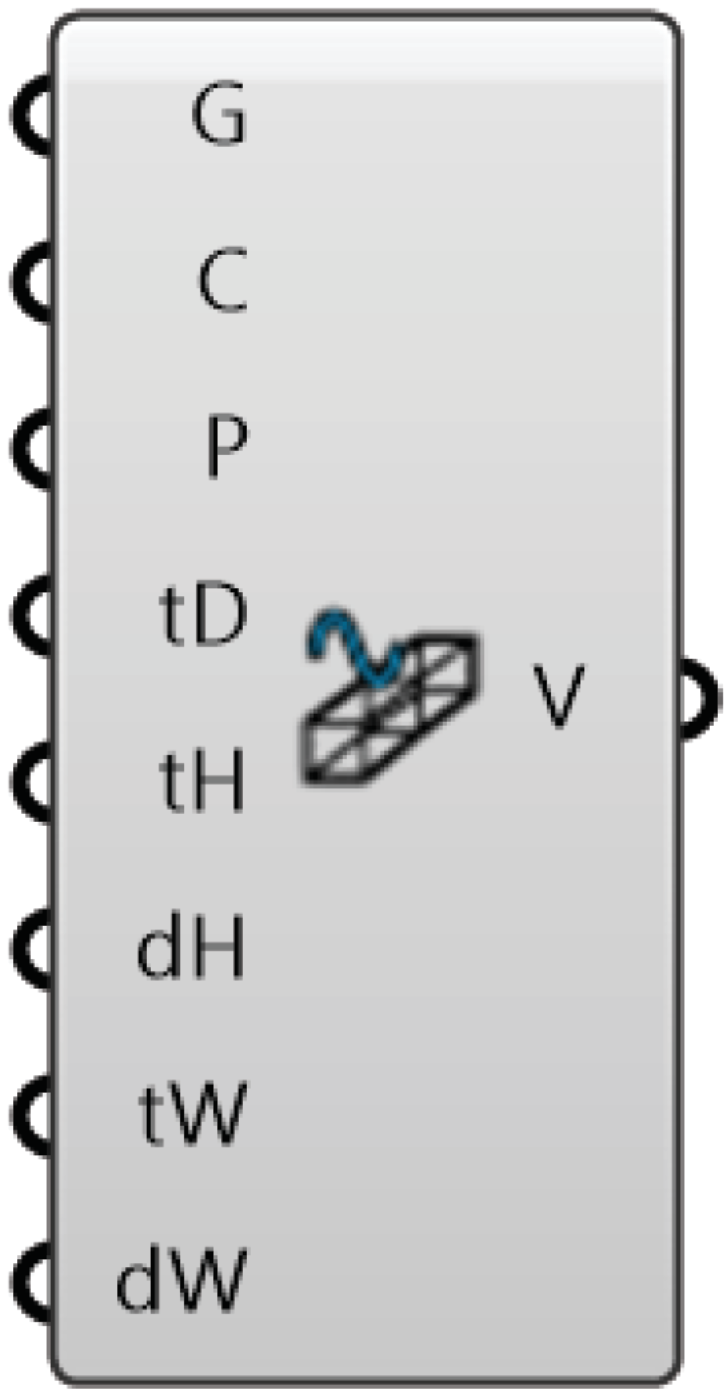

Inputs

• Geometry (G) - [geometry] - Geometry to conform to (mesh or brep)
• Curve (C) - [curve] - Curve to voxelize
• Periodic (P) - [boolean] - True if curve is closed
• Division Parameter (tD) - [number] - Parameter for voxel divisions (0-1)
• Height Parameter (tH) - [number] - Parameter for voxel height (0-1)
• Height Domain (dH) - [domain] - Domain for voxel height
• Width Parameter (tW) - [number] - Parameter for voxel width (0-1)
• Width Domain (dH) - [domain] - Domain for voxel width

Outputs

• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
