Mesh Offset Parameter (MOp)

Description

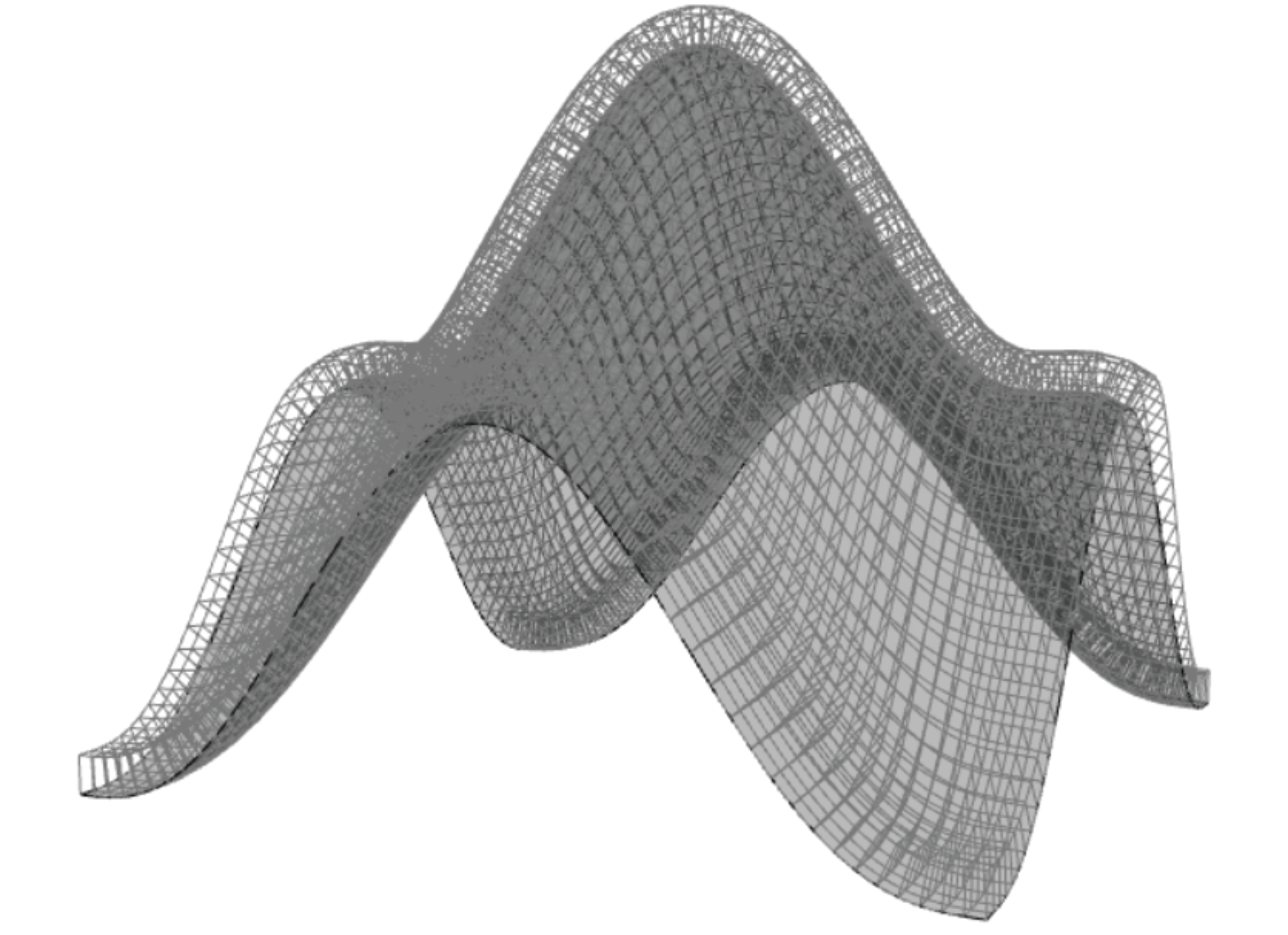

Offset a mesh uniformly into voxels. Quad based meshes will make a voxel per mesh face. If the mesh is triangulated, it subdivides the mesh so that each triangle becomes (3) 4-sided polygons, then offsets each point normal to the mesh surface to create a voxel on the surface.

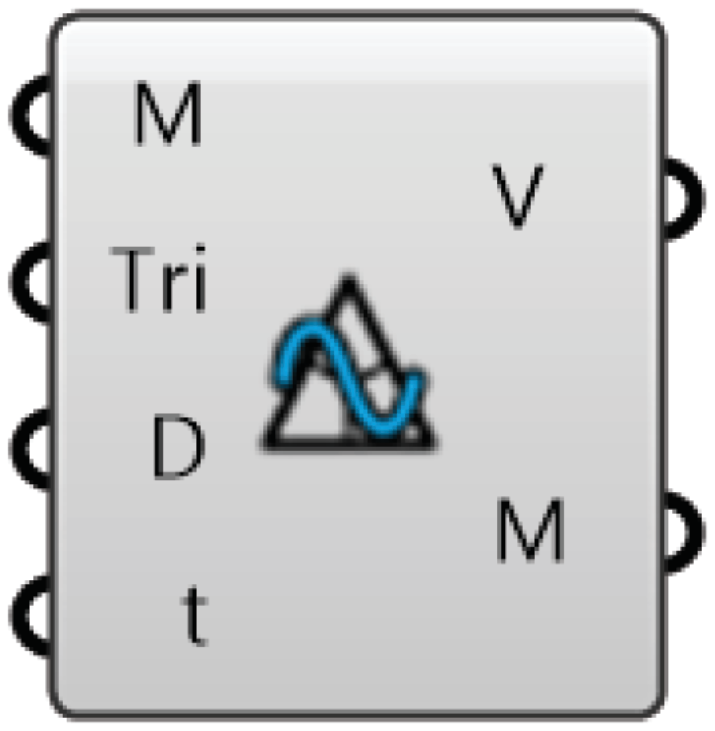

Inputs

Mesh (M) - [mesh] - Mesh to offset
Triangulated (Tri) - [boolean] - True if the mesh is triangulated. False if the mesh is quads.
Distance (D) - [number] - Distance to offset mesh
Parameter (t) - [number] - Range of numbers (0-1) for divisions

Outputs

Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
Quad Mesh (M) - [mesh] - Quad mesh generated from the input mesh
