Surface Offset Attractor (SOa)

Description

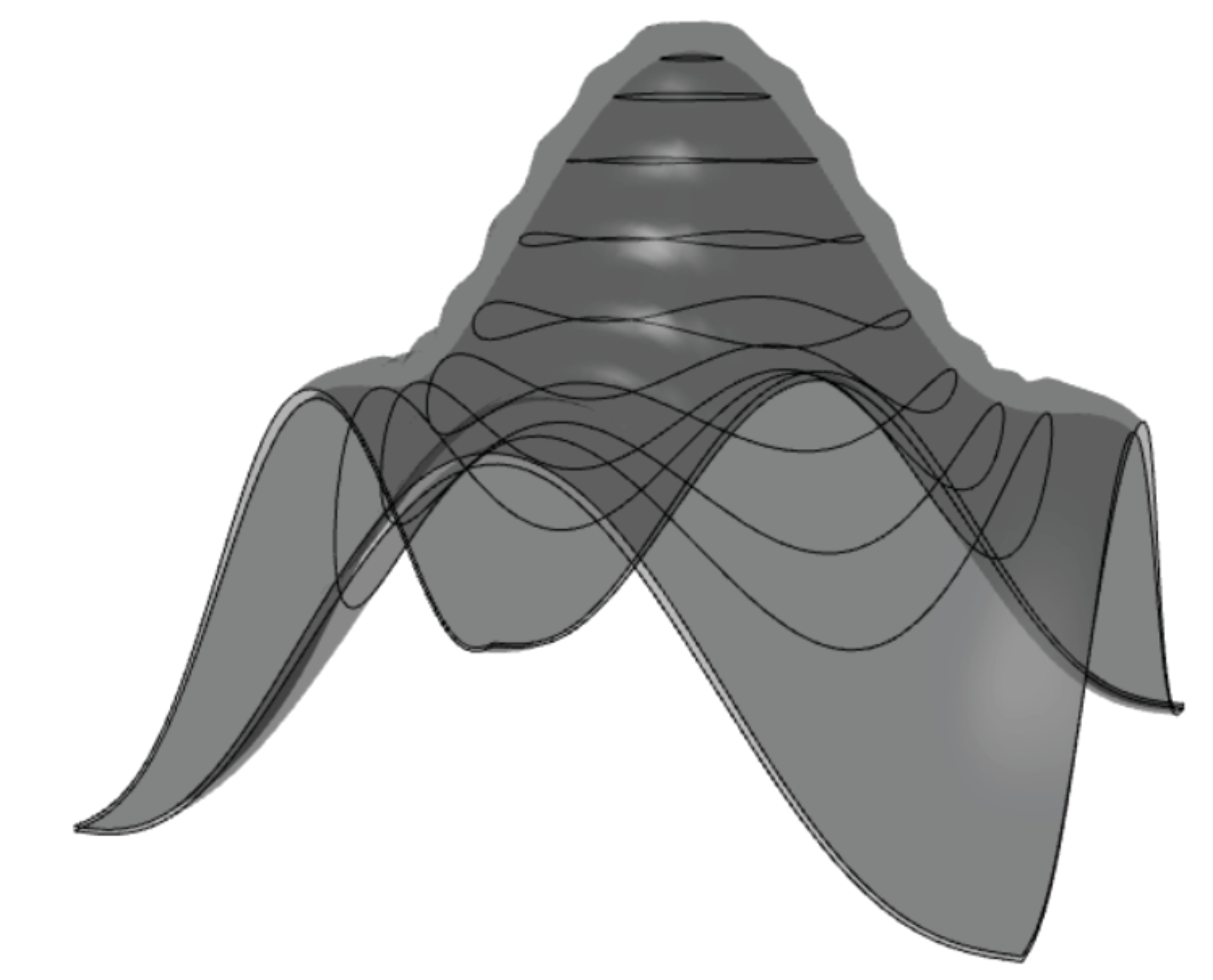

Offset a surface with attractor(s).

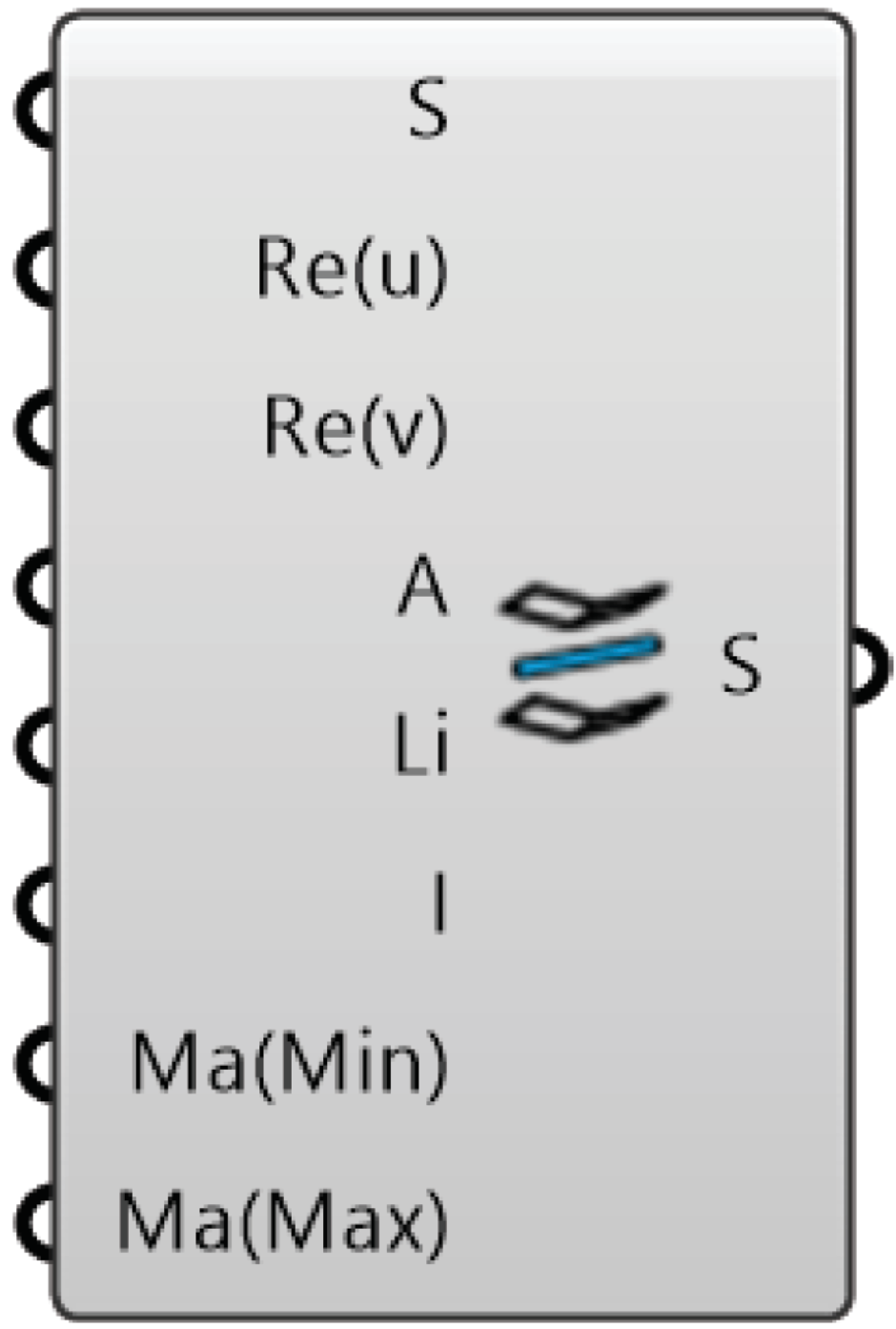

Inputs

• Surface (S) - [surface] - Surface to offset
• Resolution U (Re(u)) - [number] - Number of surface divisions in the U direction
• Resolution V (Re(v)) - [number] - Number of surface divisions in the V direction
• Attractor (A) - [geometry] - Any geometry to use as attractor(s)
• Lower Limit (Li) - [number] - Smoothing of the surface closest to the attractor
• Influence (I) - [number] - Smoothed range of attractor influence (0-1)
• Magnitude (min) (Ma(min)) - [number] - Magnitude of the offset (minimum)
• Magnitude (max) (Ma(max)) - [number] - Magnitude of the offset (maximum)

Outputs

• Surface (S) - [surface] - Offset surface
