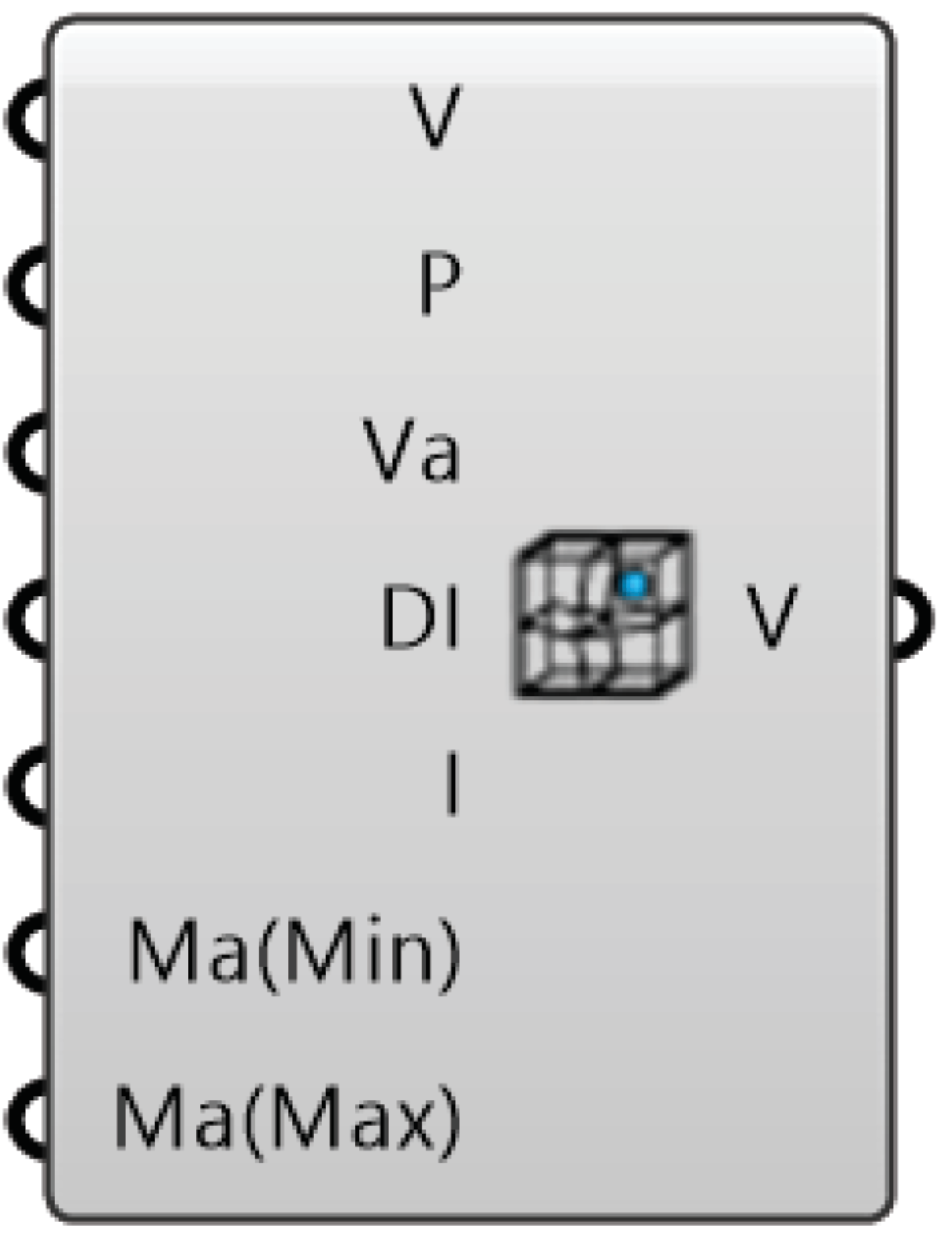

Voxel Morph Value (VMv)

Voxel Morph Value (VMv)

Description

Morph voxels with a point cloud and corrosponding values.

Inputs

  • Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
  • Points (S) - [point] - List of points (flattened)
  • Values (Va) - [number] - List of values that correspond to points (flattened)
  • Distance Influence (DI) - [boolean] - If true the distance between the points and voxels will affect the magnitude
  • Influence (I) - [number] - Smoothed range of attractor influence (0-1)
  • Magnitude (min) (Ma(min)) - [number] - Magnitude of the morph (minimum)
  • Magnitude (max) (Ma(max)) - [number] - Magnitude of the morph (maximum)

Outputs

  • Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
