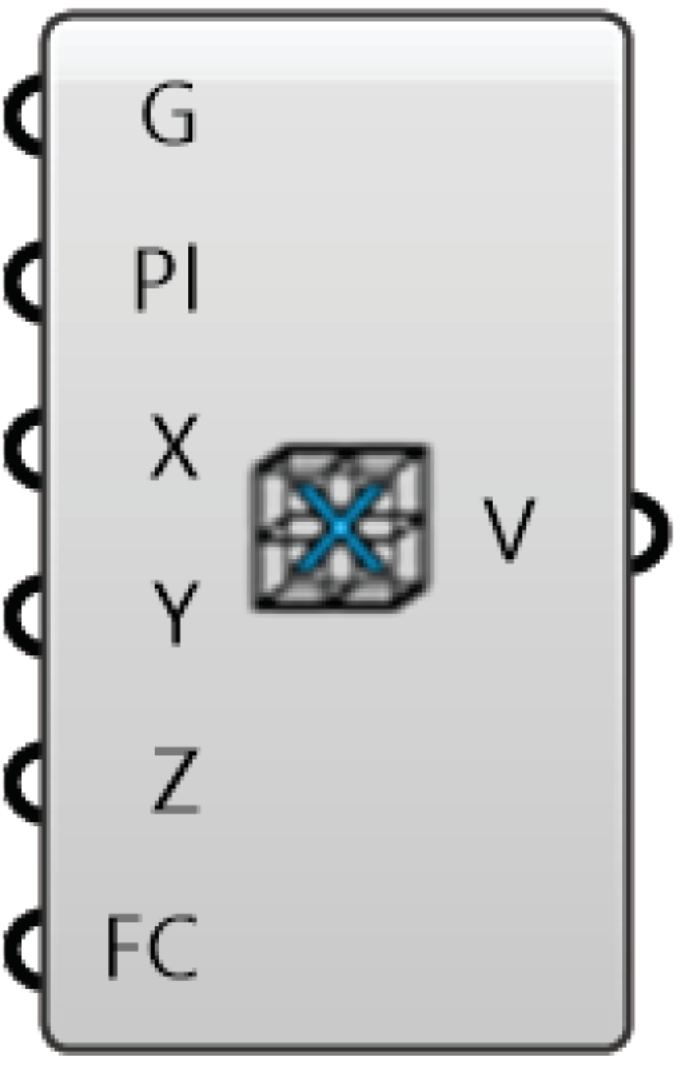

Voxelize Distance (Vd)

Description

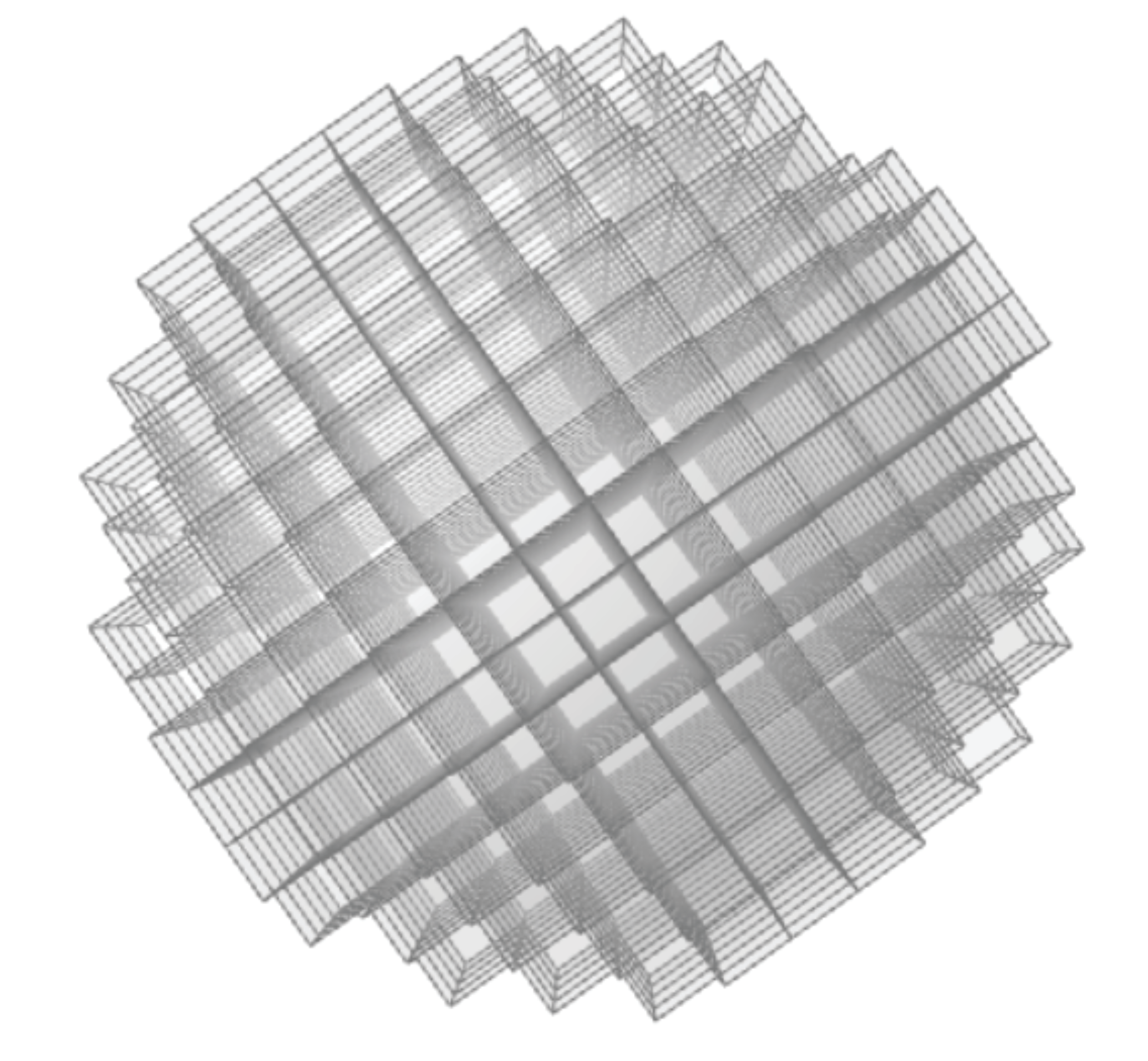

Fill a volume with equal sized voxels.

Inputs

• Geometry (G) - [geometry] - Geometry to voxelize
• Plane (Pl) - [plane] - Base plane for voxels
• Voxel Size X (X) - [number] - Size of voxels in X direction
• Voxel Size Y (Y) - [number] - Size of voxels in Y direction
• Voxel Size Z (Z) - [number] - Size of voxels in Z direction
• Fill Completely (FC) - [boolean] - If true, Voxels will fill entire volume. If false, only Voxels with their centroid within the volume will be kept.

Outputs

• Voxels (V) - [twistedbox] - Voxels to be filled with unit cells
